96ZY140 96mm Quick Start Permanent Magnet Brushed DC Motor

96ZY140 96mm Quick Start Permanent Magnet Brushed DC Motor

96ZY140 has simple design, mature manufacturing process, fast response, simple control logic and low material cost. It can directly match a variety of DC power supplies (such as 12V, 24V, etc.), and even adapt to different voltage requirements through simple circuits, and it is not easy to burn when short-term overload (such as blocked rotation), suitable for load mutations or scenes requiring short-term high torque (such as drill, winch), and has wide applicability.
It can reach a stable operating state in a short time, unlike some AC motors that may require complex starting equipment or experience a longer starting process when starting. In situations where precise torque control is required, such as material handling in industrial automated production lines, joint drives in robots, etc., it meets the requirements well to ensure the accuracy and stability of the action.

  • 96ZY140 96mm Quick Start Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：No previous article
NEXT：80ZY125 80mm Low Copper and Iron Loss Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

96ZY140 PMDC Motor

96ZY140 PMDC Motor

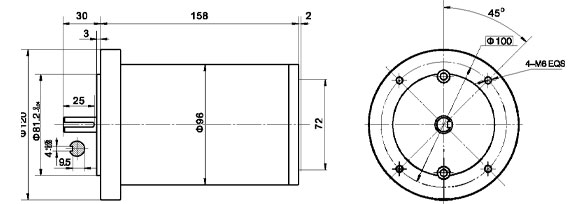

Dimensions

96MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

96ZY140-2420

24

2000

1

1600

0.8

150

9

4

40

96ZY140-2435

24

3500

1.8

2800

0.95

200

13

5.5

50
