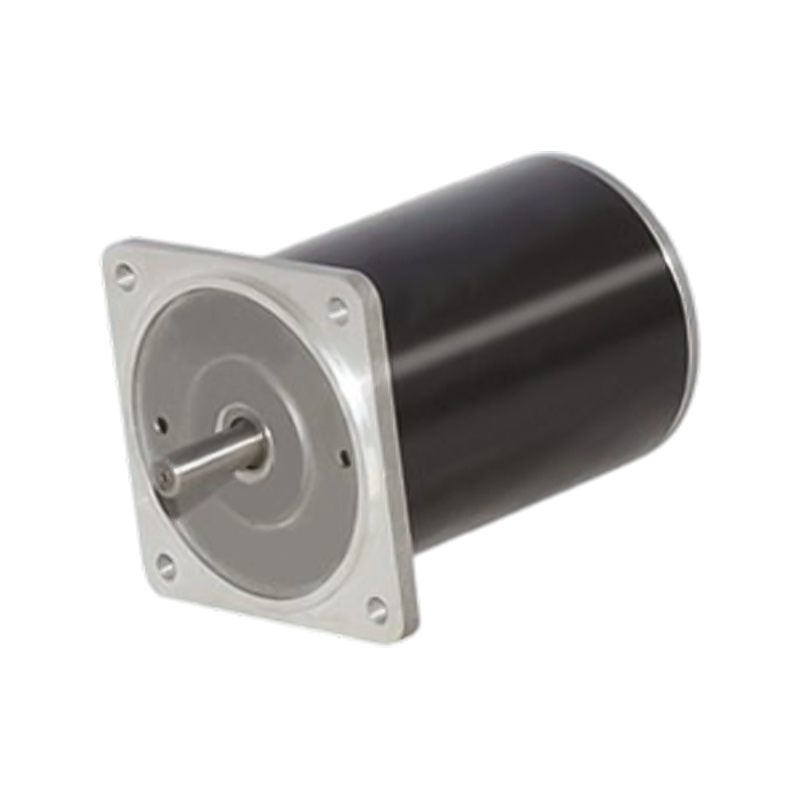

80ZY115 80mm High Performance Permanent Magnet Brushed DC Motor

80ZY115 80mm High Performance Permanent Magnet Brushed DC Motor

The 80ZY115 is a high-performance motor designed for low noise applications. Its compact size, 80 mm diameter and fully enclosed construction ensure stable operation and low noise in a variety of environments.
It can be applied to a variety of different fields and equipment, such as small toy motors, mobile vibration motors, and large industrial drive motors, electric locomotive traction motors. By using different levels of protection and special design, DC brush motors can adapt to a variety of different working environments, such as humidity, dust, high temperatures and so on.

  • 80ZY115 80mm High Performance Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：80ZY125 80mm Low Copper and Iron Loss Permanent Magnet Brushed DC Motor
NEXT：80ZY100 80mm 12V/24V Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

80ZY115 PMDC Motor

80ZY115 PMDC Motor

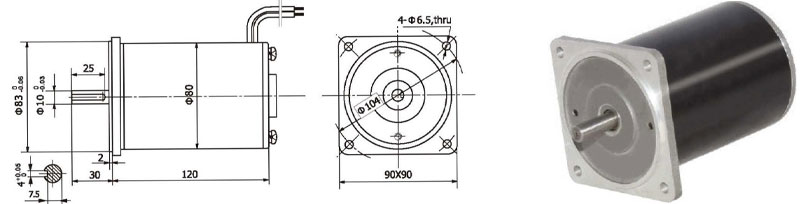

Dimensions

80MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

80ZY115-1234

12

3400

1.5

2890

0.14

42

5

0.65

22

80ZY115-2420

24

2000

0.3

1700

0.32

57

3.5

1.5

16

80ZY115-2430

24

3000

0.5

2600

0.44

120

7.5

2

33
