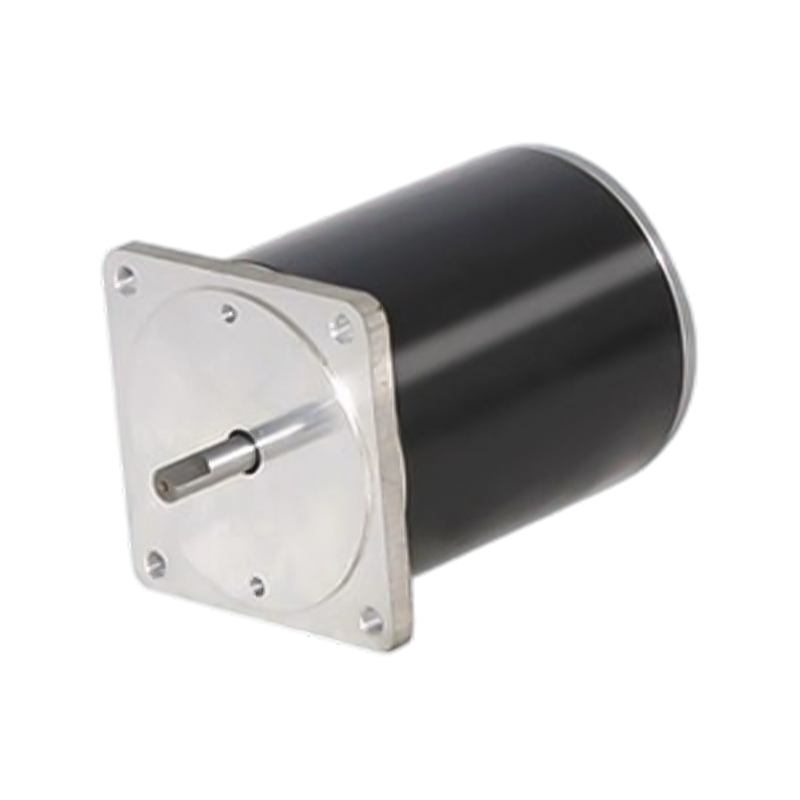

80ZY100 80mm 12V/24V Permanent Magnet Brushed DC Motor

80ZY100 80mm 12V/24V Permanent Magnet Brushed DC Motor

The 80ZY100 supports rated voltage 12V/24V, can achieve a wide range of linear speed regulation, fast response speed, simple control, low manufacturing and control costs, suitable for simple control, high starting torque but not high efficiency, noise and maintenance requirements.
By changing the voltage applied to both ends of the motor, the speed of the motor can be easily adjusted. Voltage increases, speed increases; Voltage drops, speed slows. In situations where precise torque control is required, such as material handling in industrial automated production lines, joint drives in robots, etc., it meets the requirements well to ensure the accuracy and stability of the action.

  • 80ZY100 80mm 12V/24V Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：80ZY115 80mm High Performance Permanent Magnet Brushed DC Motor
NEXT：63ZY125 63mm High Protection Level Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

80ZY100 PMDC Motor

80ZY100 PMDC Motor

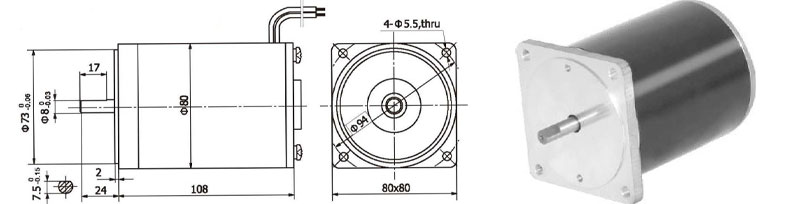

Dimensions

80MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

80ZY100-2420

24

2000

0.4

1700

0.25

45

3

1.5

16

80ZY100-2430

24

3000

0.5

2600

0.3

80

5

1.8

22
