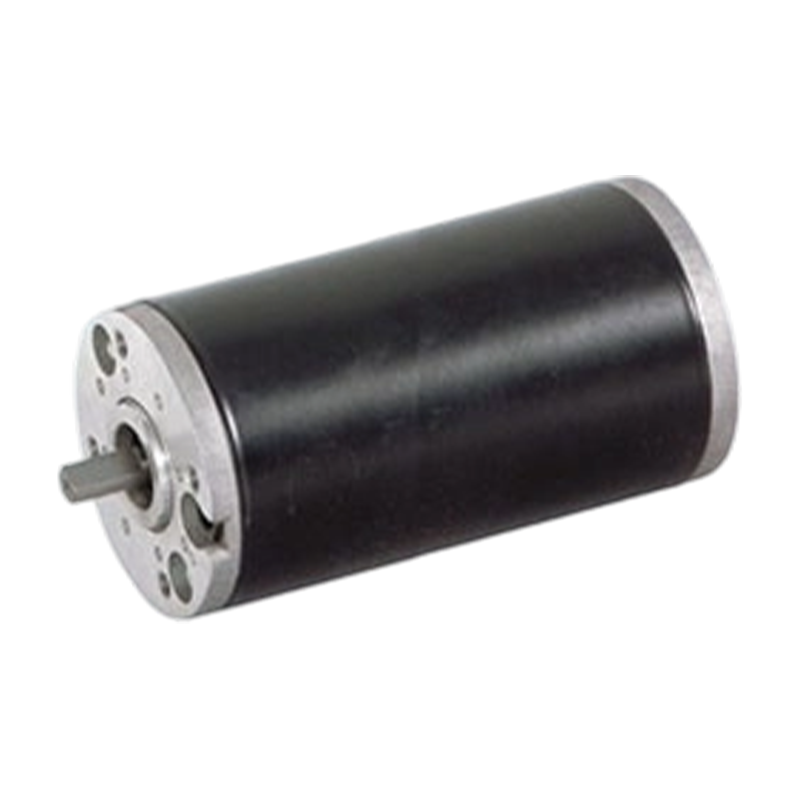

63ZY125 63mm High Protection Level Permanent Magnet Brushed DC Motor

63ZY125 63mm High Protection Level Permanent Magnet Brushed DC Motor

The 63ZY125 is a high-performance 63 mm diameter permanent magnet DC motor with a fully enclosed construction designed for a wide range of applications requiring low noise operation. The product performs well in terms of size, performance and reliability to meet the needs of industrial automation, medical equipment, home appliances and more.
By using different protection levels and special design, DC brush motors can adapt to a variety of different working environments, such as humidity, dust, high temperature and so on. For example, in some chemical enterprises, DC brush motors with special anti-corrosion treatment can operate stably in harsh chemical environments; In some mining equipment, DC brush motors with high protection levels can adapt to dusty working environments.

  • 63ZY125 63mm High Protection Level Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：80ZY100 80mm 12V/24V Permanent Magnet Brushed DC Motor
NEXT：63ZY105 63mm High Applicability Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

63ZY125 PMDC Motor

63ZY125 PMDC Motor

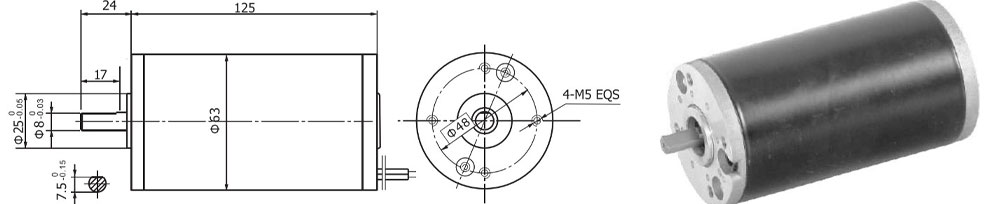

Dimensions

63MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

63ZY125-2430

24

3000

0.5

2500

265

65

4.6

950

15.2

63ZY125-2435

24

3500

0.8

2800

320

95

6

1100

19.3

63ZY125-2440

24

4000

1.2

3200

450

150

9

1200

22.6
