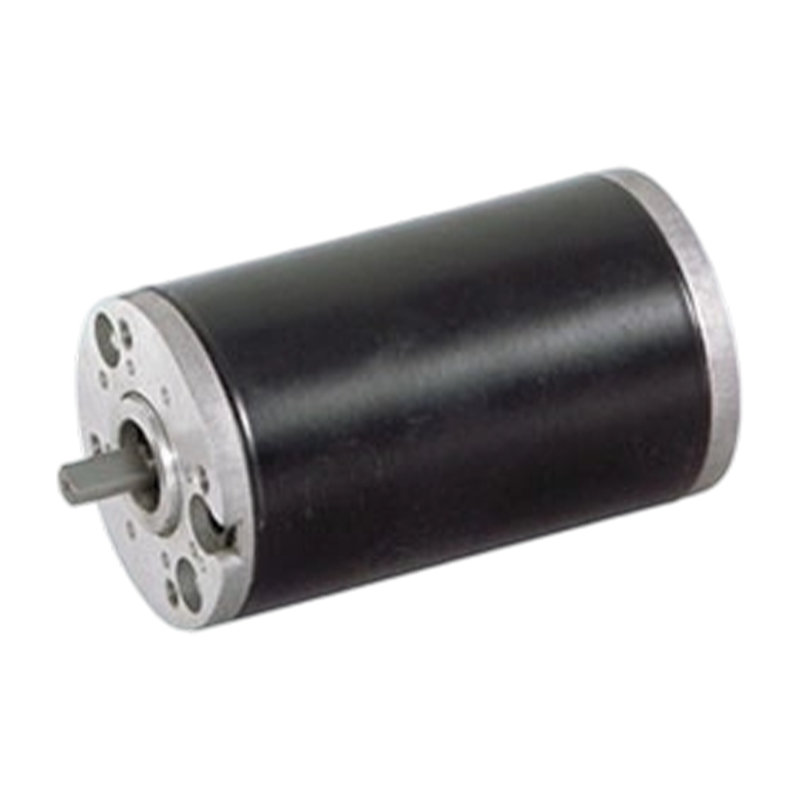

63ZY105 63mm High Applicability Permanent Magnet Brushed DC Motor

63ZY105 63mm High Applicability Permanent Magnet Brushed DC Motor

The 63ZY105 is a high-performance motor designed for low noise applications. The compact size of the product is 63 mm in diameter and the fully enclosed construction ensures stable operation and low noise in a variety of environments.
From micro to large applications, DC brush motors cover a wide range of power, from a few milliwatts of micro motors to tens of kilowatts or even more power of large motors. This allows it to be used in a variety of different fields and equipment, such as small toy motors, mobile phone vibration motors, as well as large industrial drive motors, electric locomotive traction motors, etc.

  • 63ZY105 63mm High Applicability Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：63ZY125 63mm High Protection Level Permanent Magnet Brushed DC Motor
NEXT：60ZY105 60mm Simple Control Mechanism Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

63ZY105 PMDC Motor

63ZY105 PMDC Motor

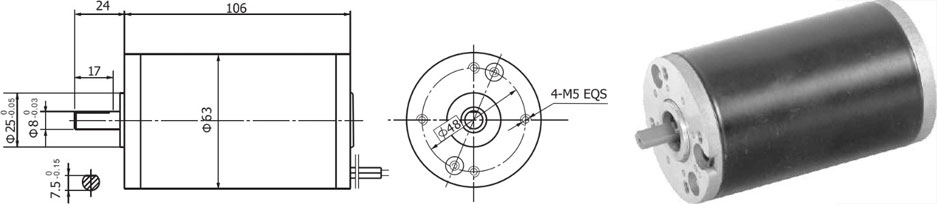

Dimensions

63MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

63ZY105-2420

24

2000

0.25

1600

165

30

1.8

760

7.3

63ZY105-2430

24

3000

0.35

2400

180

45

2.2

790

11.2

63ZY105-2450

24

5000

0.5

3200

230

90

6

920

15.5
