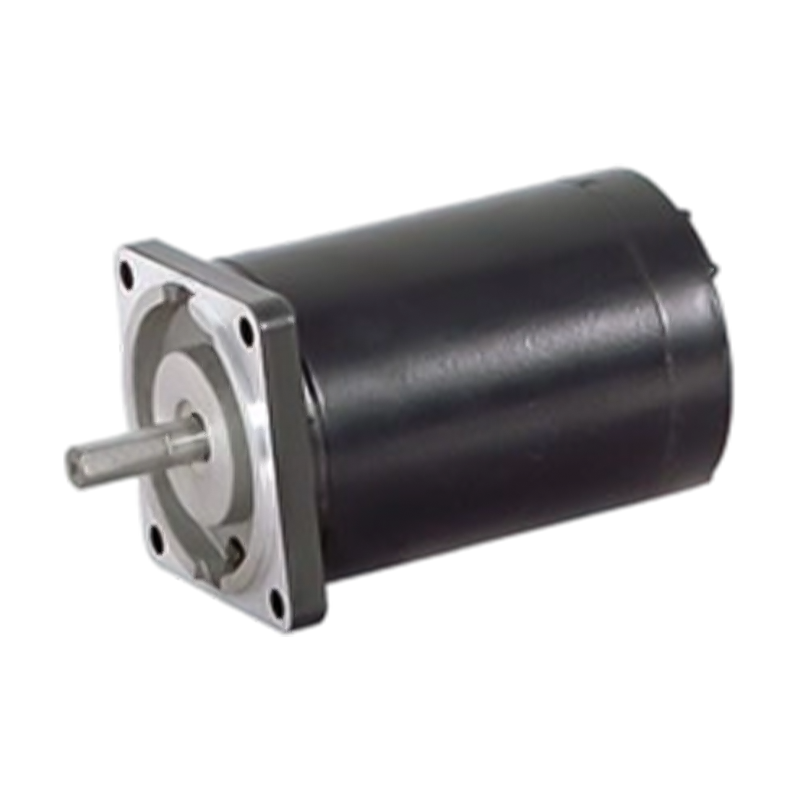

60ZY105 60mm Simple Control Mechanism Permanent Magnet Brushed DC Motor

60ZY105 60mm Simple Control Mechanism Permanent Magnet Brushed DC Motor

60ZY105 supports rated voltage 12V/24V, can achieve a wide range of linear speed regulation, fast response speed, simple control, low manufacturing and control costs, suitable for simple control, high starting torque but not high efficiency, noise and maintenance requirements.
Energy feedback is easy to achieve, in some applications that require frequent braking, DC brush motors can convert the kinetic energy of the load into electrical energy back to the power supply by running the motor in a power generation state, achieving energy recovery and improving the energy efficiency of the entire system.

  • 60ZY105 60mm Simple Control Mechanism Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：63ZY105 63mm High Applicability Permanent Magnet Brushed DC Motor
NEXT：60ZY95 60mm High Conversion Efficiency Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

60ZY105 PMDC Motor

60ZY105 PMDC Motor

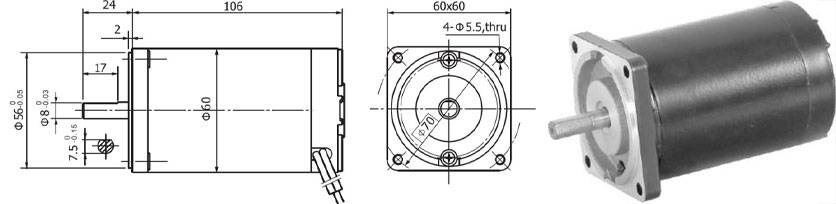

Dimensions

60MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

60ZY105-2420

24

2000

0.25

1600

165

30

1.8

760

7.3

60ZY105-2430

24

3000

0.35

2400

180

45

2.2

790

11.2

60ZY105-2450

24

5000

0.5

4000

230

90

6

920

15.5
