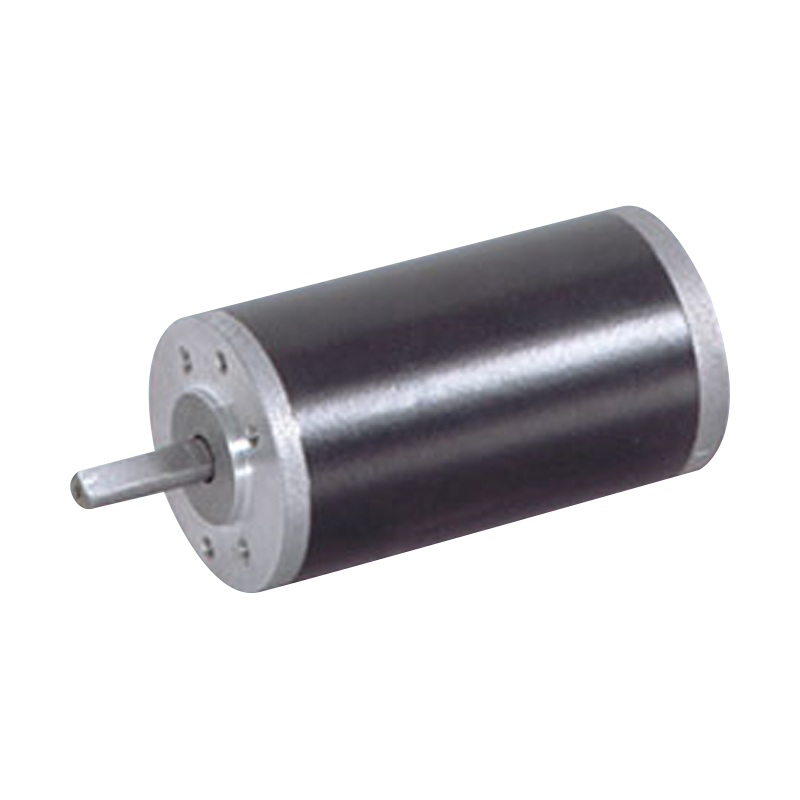

52ZY95 52mm 12V/24V Permanent Magnet Brushed DC Motor

52ZY95 52mm 12V/24V Permanent Magnet Brushed DC Motor

52ZY85 supports rated voltage 12V/24V, can achieve a wide range of linear speed regulation, fast response speed, simple control, low manufacturing and control costs, suitable for simple control, high starting torque but not high efficiency, noise and maintenance requirements
The structure of DC brush motor is relatively simple, mainly composed of stator, rotor, commutator and brush and other components. The structure and manufacturing process of these components are relatively mature, the production difficulty is relatively low, and the cost is relatively low, which is conducive to large-scale production and wide application.

  • 52ZY95 52mm 12V/24V Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：52ZY125 52mm Easy Maintenance Permanent Magnet Brushed DC Motor
NEXT：52ZY85 52mm 2000~4000RPM Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

52ZY95 PMDC Motor

52ZY95 PMDC Motor

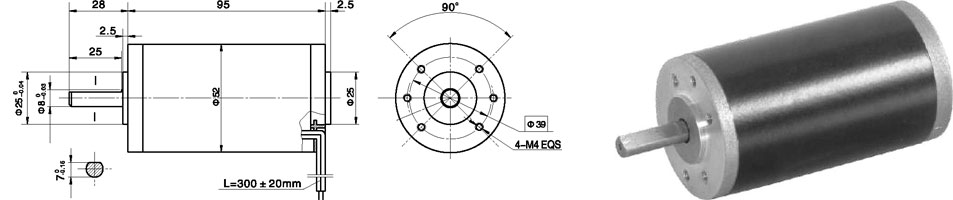

Dimensions

52MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall current A

52ZY95-2420

24

2000

0.2

1600

80

15

1.2

400

4.2

52ZY95-2430

24

3000

0.3

2400

100

25

1.8

410

6

52ZY95-2440

24

4000

0.4

3200

130

40

3

585

11
