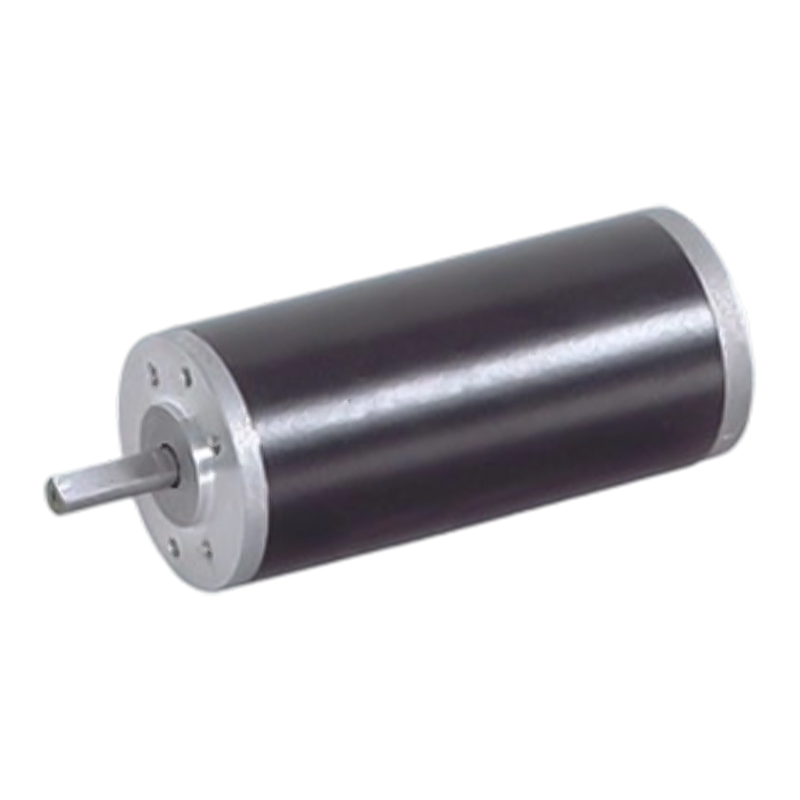

52ZY125 52mm Easy Maintenance Permanent Magnet Brushed DC Motor

52ZY125 52mm Easy Maintenance Permanent Magnet Brushed DC Motor

The 52ZY125 is a high-performance motor designed for low noise applications. The compact size of the product is 52 mm in diameter, and the fully enclosed construction ensures stable operation and low noise in a variety of environments.
Although the brush and commutator will have a certain amount of wear during operation, their structure is relatively simple and easy to disassemble and replace. In addition, other components inside the motor are easier to check and maintain, and technicians can more easily maintain and repair the motor, reducing equipment maintenance costs and downtime.

  • 52ZY125 52mm Easy Maintenance Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：60ZY75 60mm Enclosed Permanent Magnet Brushed DC Motor
NEXT：52ZY95 52mm 12V/24V Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

52ZY125 PMDC Motor

52ZY125 PMDC Motor

Dimensions

52MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

52ZY125-2420

24

2000

0.4

1600

160

30

2

620

6.5

52ZY125-2430

24

3000

0.6

2400

190

50

3.5

700

11.5

52ZY125-2440

24

4000

0.8

3200

220

80

4.5

838

16.4
