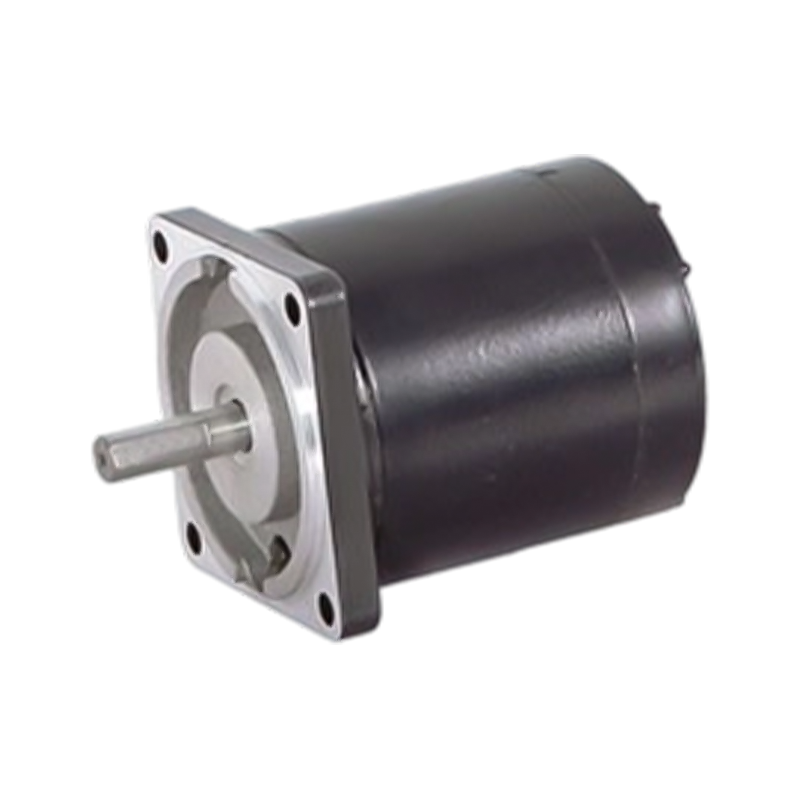

60ZY75 60mm Enclosed Permanent Magnet Brushed DC Motor

60ZY75 60mm Enclosed Permanent Magnet Brushed DC Motor

The 60ZY75 60mm Enclosed Permanent Magnet Brushed DC Motor is a high-performance electric motor specifically designed for low-noise application scenarios. This product features a compact size with a diameter of 60 millimeters and a fully enclosed structure, ensuring stable operation and low noise characteristics in various environments. Its main technical parameters include: rated voltage of 24VDC, no-load speed ranging from 2000 to 4000 rpm, no-load current from 0.40A to 0.80A, rated speed from 1600 to 3200 rpm, rated torque from 160mN.m to 220mN.m, output power from 30W to 80W, rated current from 2.0A to 4.5A, stall torque from 620mN.m to 838mN.m, and stall current from 6.5A to 16.4A. This motor is suitable for various industrial equipment and automation systems that require high precision, low noise, and high efficiency, such as medical devices, precision instruments, and home appliances.

  • 60ZY75 60mm Enclosed Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：60ZY95 60mm High Conversion Efficiency Permanent Magnet Brushed DC Motor
NEXT：52ZY125 52mm Easy Maintenance Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

60ZY75 PMDC Motor

60ZY75 PMDC Motor

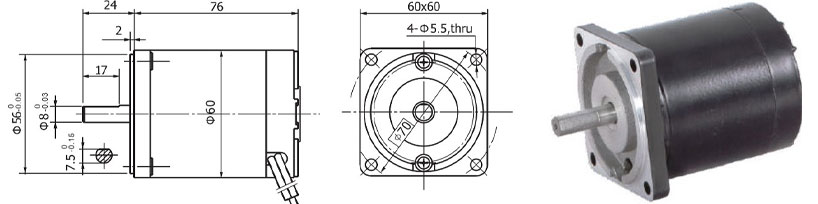

Dimensions

60MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

60ZY75-2420

24

2000

0.3

1600

50

8

0.8

215

2.1

60ZY75-2430

24

3000

0.4

2400

70

17

1.2

296

5

60ZY75-2440

24

4000

0.5

3200

90

30

2.2

404

8.5
