52ZY85 52mm 2000~4000RPM Permanent Magnet Brushed DC Motor

52ZY85 52mm 2000~4000RPM Permanent Magnet Brushed DC Motor

The 52ZY85 52mm permanent magnet Brushed DC Motor is a high-performance 52mm diameter permanent magnet DC motor with a fully enclosed structure, designed for various applications that require low-noise operation. This product excels in dimensions, performance, and reliability, meeting the needs of industrial automation, medical equipment, home appliances, and more. Its key technical specifications include a rated voltage of 24VDC, no-load speeds ranging from 2000 to 4000 RPM, output power up to 27 watts, and rated currents between 0.9 and 2.0 amperes. Additionally, the motor features high efficiency and a long lifespan, ensuring stable operation in demanding working environments. Through optimized design and precision manufacturing, the 52ZY85 PMDC Motor not only delivers outstanding performance but also guarantees user experience and satisfaction.

  • 52ZY85 52mm 2000~4000RPM Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：52ZY95 52mm 12V/24V Permanent Magnet Brushed DC Motor
NEXT：45ZYN78 45mm Quick Response Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

52ZY85 PMDC Motor

52ZY85 PMDC Motor

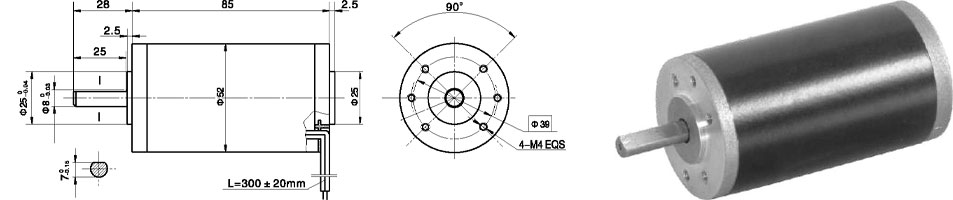

Dimensions

52MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall current A

52ZY85-2420

24

2000

0.25

1600

60

10

0.9

260

5

52ZY85-2430

24

3000

0.35

2400

75

18

1.5

320

6

52ZY85-2440

24

4000

0.42

3200

80

27

2

446

7.5
