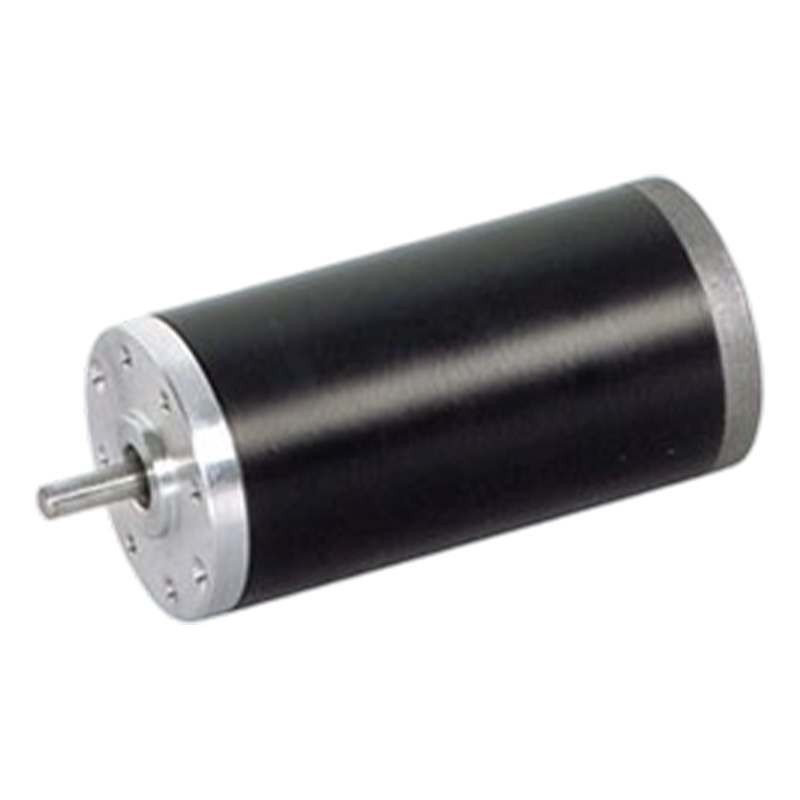

45ZY78 45mm Linear Speed Regulation Permanent Magnet Brushed DC Motor

45ZY78 45mm Linear Speed Regulation Permanent Magnet Brushed DC Motor

45ZY78 supports rated voltage 12V/24V, can achieve a wide range of linear speed regulation, fast response speed, simple control, low manufacturing and control costs, suitable for simple control, high starting torque but not high efficiency, noise and maintenance requirements.
The DC brush motor can provide a large starting torque when starting, and can quickly drive the load to run. It can reach a stable operating state in a short period of time, unlike some AC motors which may require complex starting equipment or undergo a long starting process when starting.

  • 45ZY78 45mm Linear Speed Regulation Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：45ZYN68 45mm Fully Enclosed Permanent Magnet Brushed DC Motor
NEXT：45ZY68 45mm Low Noise Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

45ZY78 PMDC Motor

45ZY78 PMDC Motor

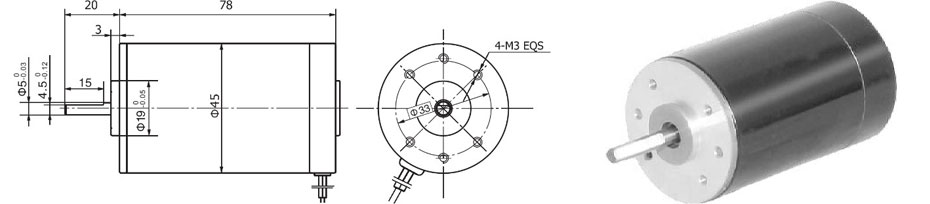

Dimensions

45MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

Type

Rated Voltage DVC

No-load speed r/min

No-load current

Rated speed r/min

Rated Torque mN.m

Output power W

Rated current A

Stall Torque mN.m

Stall Current A

45ZY78-2430

24

3000

0.22

2400

55

15

1

240

3

45ZY78-2440

24

4000

0.3

3200

70

23

1.5

310

4.8
