Home / Product / Brushed DC Motor / 45ZYN68 45mm Fully Enclosed Permanent Magnet Brushed DC Motor

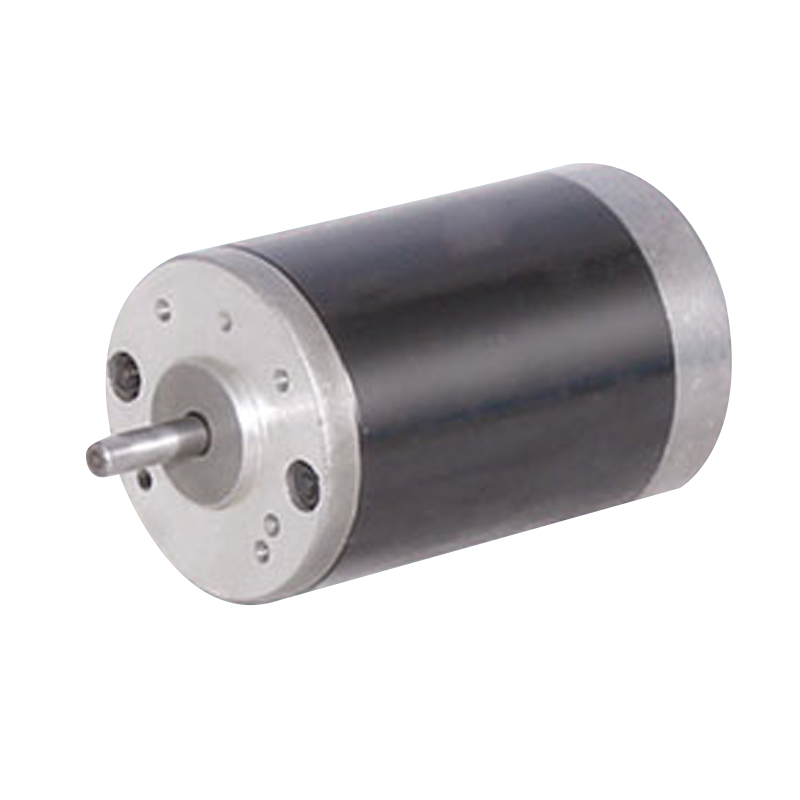

45ZYN68 45mm Fully Enclosed Permanent Magnet Brushed DC Motor

45ZYN68 45mm Fully Enclosed Permanent Magnet Brushed DC Motor

The 45ZYN68 is a high-performance motor designed for low noise applications. The compact, 45 mm diameter, fully enclosed construction ensures stable operation and low noise in a variety of environments.
The torque of the DC brush motor is proportional to the armature current, and the output torque of the motor can be precisely controlled as long as the current is well controlled. In situations where precise torque control is required, such as material handling in industrial automated production lines, joint drives in robots, etc., it meets the requirements well to ensure the accuracy and stability of the action.

  • 45ZYN68 45mm Fully Enclosed Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：45ZYN78 45mm Quick Response Permanent Magnet Brushed DC Motor
NEXT：45ZY78 45mm Linear Speed Regulation Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

45ZYN68 PMDC Motor

45ZYN68 Rare Earth PMDC Motor

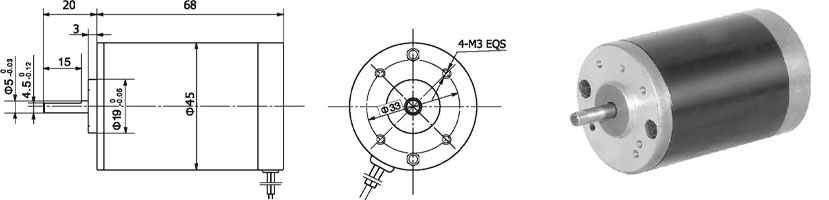

Dimensions

45MM OD rare earth PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall current A

45ZYN68-2420

24

2000

0.18

1600

42

7

0.5

220

2

45ZYN68-2430

24

3000

0.25

2400

65

16

1.2

300

4.4

45ZYN68-2440

24

4000

0.3

3200

90

30

2

375

6.8
