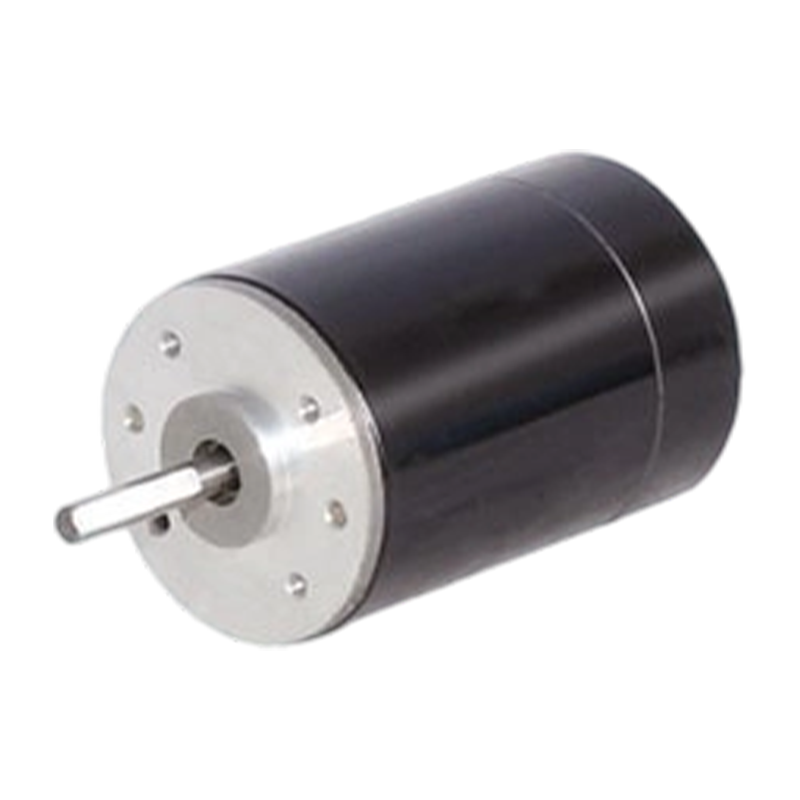

45ZY68 45mm Low Noise Permanent Magnet Brushed DC Motor

45ZY68 45mm Low Noise Permanent Magnet Brushed DC Motor

The 45ZY68 is a high performance 45mm diameter permanent magnet DC motor with a fully enclosed construction designed for a wide range of applications requiring low noise operation. The product performs well in terms of size, performance and reliability to meet the needs of industrial automation, medical equipment, home appliances and more.
By changing the voltage applied to both ends of the motor, the speed of the motor can be easily adjusted. Voltage increases, speed increases; Voltage drops, speed slows. This speed regulation method is simple and direct, and the control accuracy is high, which can meet the requirements of precise control of speed in many different application scenarios.

  • 45ZY68 45mm Low Noise Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：45ZY78 45mm Linear Speed Regulation Permanent Magnet Brushed DC Motor
NEXT：42ZY85 42mm High Torque Load Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

45ZY68 PMDC Motor

45ZY68 PMDC Motor

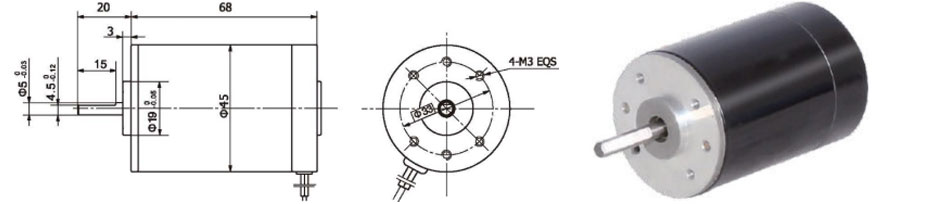

Dimensions

45MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

Type

Rated Voltage DVC

No-load speed r/min

No-load current

Rated speed r/min

Rated Torque mN.m

Output power W

Rated current A

Stall Torque mN.m

Stall Current A

45ZY68-2430

24

3000

0.2

2500

45

12

0.8

190

2.7

45ZY68-2440

24

4000

0.3

3200

55

18

1.2

195

3
