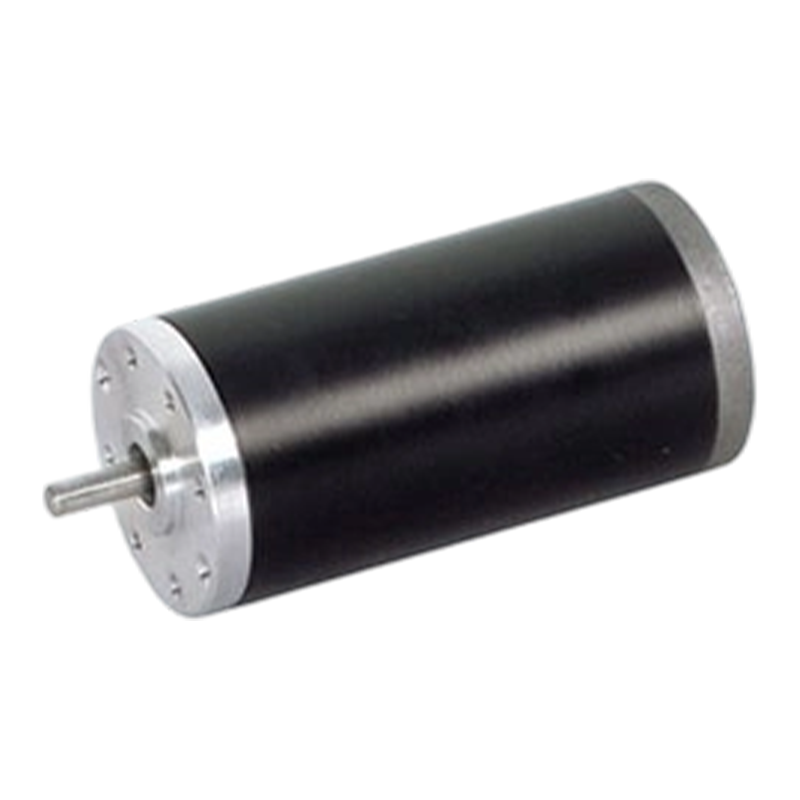

42ZY85 42mm High Torque Load Permanent Magnet Brushed DC Motor

42ZY85 42mm High Torque Load Permanent Magnet Brushed DC Motor

42ZY85 permanent magnet DC motor has simple design, mature manufacturing process, fast response, simple control logic and low material cost. It can directly match a variety of DC power supplies (such as 12V, 24V, etc.), and even adapt to different voltage requirements through simple circuits, and it is not easy to burn when short-term overload (such as blocked rotation), suitable for load mutations or scenes requiring short-term high torque (such as drill, winch), and has wide applicability.

  • 42ZY85 42mm High Torque Load Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：45ZY68 45mm Low Noise Permanent Magnet Brushed DC Motor
NEXT：38ZY63 38mm 24V/48V Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

42ZY85 PMDC Motor

42ZY85 PMDC Motor

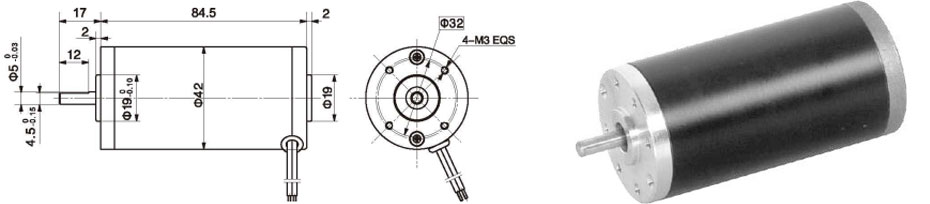

Dimensions

42MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

Type

Rated Voltage DVC

No-load speed r/min

No-load current

Rated speed r/min

Rated Torque mN.m

Output power W

Rated current A

Stall Torque mN.m

Stall Current A

42ZY85-2430

24

3000

0.2

2400

70

15

1.2

280

3.7

42ZY85-2436

24

3600

0.3

2850

80

23

1.5

290

4.7
