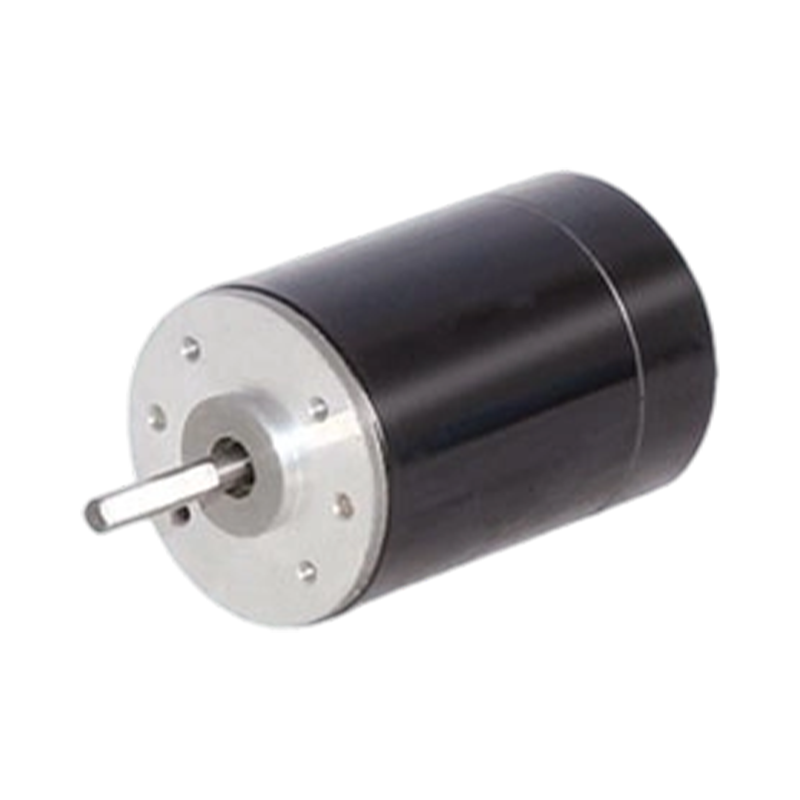

38ZY63 38mm 24V/48V Permanent Magnet Brushed DC Motor

38ZY63 38mm 24V/48V Permanent Magnet Brushed DC Motor

38ZY63 permanent magnet DC motor support rated voltage 24V/48V, can achieve a wide range of linear speed regulation, fast response speed, simple control, low manufacturing and control costs, suitable for the need for simple control, high starting torque but the efficiency, noise and maintenance requirements are not high occasions, such as household appliances, power tools, toys and some industrial equipment.

  • 38ZY63 38mm 24V/48V Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：42ZY85 42mm High Torque Load Permanent Magnet Brushed DC Motor
NEXT：No next article

+86 0579-86817938-836

[email protected]

38ZY63 PMDC Motor

38ZY63 PMDC Motor

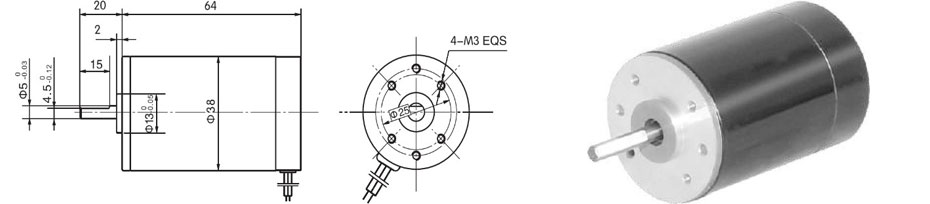

Dimensions

38 mm OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

Type

Rated Voltage DVC

No-load speed r/min

No-load current

Rated speed r/min

Rated Torque mN.m

Output power W

Rated current A

Stall Torque mN.m

Stall Current A

38ZY63-2430

24

3000

160

2400

15

3.8

0.35

65

1

38ZY63-2440

24

4000

220

3200

20

6.5

0.6

90

2
