60JB50K/57ZWN75 2-5N.m BLDC Planetary Gear Motor

60JB50K/57ZWN75 2-5N.m BLDC Planetary Gear Motor

This product combines a brushless DC motor with a precision planetary gearbox, featuring a compact outer diameter and high transmission efficiency. With a rated torque range spanning 2N·m to 5N·m, it maintains smooth operation under various load and speed conditions. The internal gears are precisely machined, resulting in low noise, minimal heat generation, and consistent torque and speed control. This makes it an ideal choice for applications requiring high reliability and accuracy, such as industrial automation, robotics, and smart home systems.
The motor’s brushless design delivers extended service life and lower maintenance costs. Multiple voltage specifications and gear ratios are available to accommodate diverse system requirements, while overload capacity and strong anti-interference performance

  • 60JB50K/57ZWN75 2-5N.m BLDC Planetary Gear Motor
Download Product Inquiry
PREV：No previous article
NEXT：60JB50K/57ZWN55 24vdc 60mm BLDC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

60JB50K/57ZWN75

60mm JB Standard Gearbox,

Permissible Load Range: 2N.m~5N.m

BLDC Planetary Gear Motor

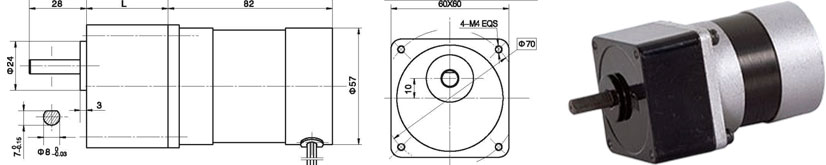

Dimensions

Brushless Motor Technical Data

TYPE

Rated Voltage VDC

No-load Speed r/min

No-load Current A

Rated Speed r/min

Rated Torque mN.m

Output power W

Rated Current A

57ZWN75-2420

24

2000

450

1200

300

40

2.8

57ZWN75-2430

24

3000

400

2000

300

60

4

Brushless Gear Motor Technical Data

Configuration 57ZWN75-2420 Brushless DC Motor (57ZWN75-2420 BLDC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

Number of gear trains

2

2

2

2

2

2

3

3

Length(L)  mm

32

32

32

32

32

32

40

40

No-load speed  r/min

667

400

267

200

160

133

80

67

Rated speed rAnin

400

240

160

120

96

80

48

40

Rated torque N.m

0.72

1.2

1.8

2.4

3

3.6

5

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5
Configuration 57ZWN75-2430 BLDC Motor (57ZWN75-2430 BLDC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

Number of gear trains

2

2

2

2

2

2

3

3

Length(L)  mm

32

32

32

32

32

32

40

40

No-load speed  r/min

1000

600

400

300

240

200

120

100

Rated speed rAnin

667

400

267

200

160

133

80

67

Rated torque N.m

0.72

1.2

1.8

2.4

3

3.6

5

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5
