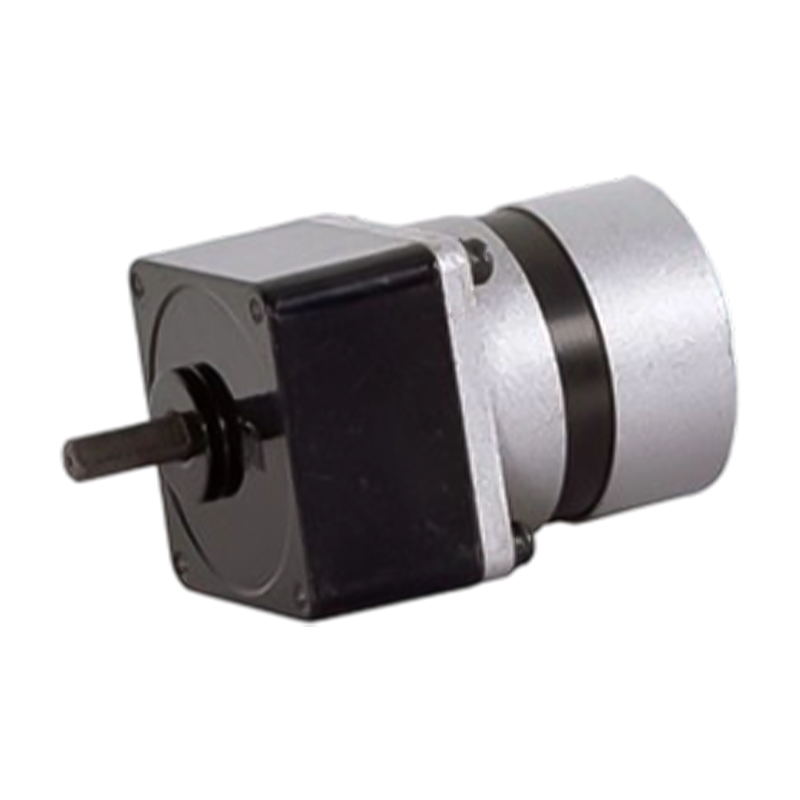

60JB50K/57ZWN55 24vdc 60mm BLDC Planetary Gear Motor

60JB50K/57ZWN55 24vdc 60mm BLDC Planetary Gear Motor

60JB50K/57ZWN55 BLDC Planetary Gear Motor is an integrated drive device combining a high-performance brushless DC motor and a precision planetary gear reducer, suitable for various applications requiring high accuracy, efficiency, and reliability. The product offers multiple reduction ratio options ranging from 3:1 to 75:1, catering to different load and speed requirements. Its standard model is the 60mm JB standard gearbox, with a permissible load range of 2N.m to 5N.m, ensuring stable operation under various conditions. Additionally, the motor features numerous technical parameters such as rated voltage, no-load speed, no-load current, rated speed, rated torque, output power, and rated current, all of which have been rigorously tested and optimized for performance. Detailed diagrams of the external shape and installation dimensions are provided, making installation and maintenance straightforward for users. In summary, this BLDC planetary gear motor stands out with its technical characteristics and broad applicability, making it an ideal choice for industrial automation, robotics, and other high-precision applications.

  • 60JB50K/57ZWN55 24vdc 60mm BLDC Planetary Gear Motor
Download Product Inquiry
PREV：60JB50K/57ZWN75 2-5N.m BLDC Planetary Gear Motor
NEXT：No next article

+86 0579-86817938-836

[email protected]

60JB50K/57ZWN55

60 mm JB Standard Gearbox,

Permissible Load Range: 2N.m~5N.m

BLDC Planetary Gear Motor

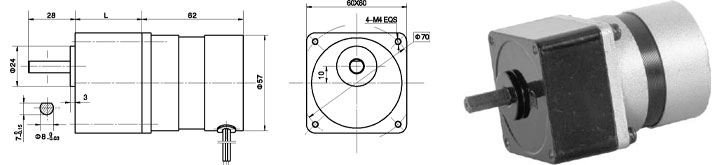

Dimensions

Brushless Motor Technical Data

TYPE

Rated Voltage VDC

No-load Speed r/min

No-load Current A

Rated Speed r/min

Rated Torque mN.m

Output power W

Rated Current A

57ZWN55-2420

24

2000

200

1300

85

10

1.2

57ZWN55-2430

24

3000

400

2250

110

25

2

Brushless Gear Motor Technical Data

Configuration 57ZWN55-2420 Brushless DC Motor (57ZWN55-2420 BLDC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

75

90

Number of gear trains

2

2

2

2

2

2

3

3

3

4

4

Length(L)  mm

32

32

32

32

32

32

40

40

40

40

40

No-load speed  r/min

667

400

267

200

160

133

80

67

40

27

22

Rated speed rAnin

433

260

173

130

104

86

52

43

26

17

14

Rated torque N.m

0.2

0.34

0.51

0.68

0.86

1.2

1.5

1.8

3.1

4.2

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5

5

10

10
Configuration 57ZWN55-2430 BLDC Motor (57ZWN55-2430 BLDC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

75

Number of gear trains

2

2

2

2

2

2

3

3

3

4

Length(L)  mm

32

32

32

32

32

32

40

40

40

40

No-load speed  r/min

1000

600

400

300

240

200

120

100

60

40

Rated speed rAnin

750

450

300

225

180

150

90

75

45

30

Rated torque N.m

0.26

0.44

0.66

0.89

1.1

1.3

2

2.4

4

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5

5

10
