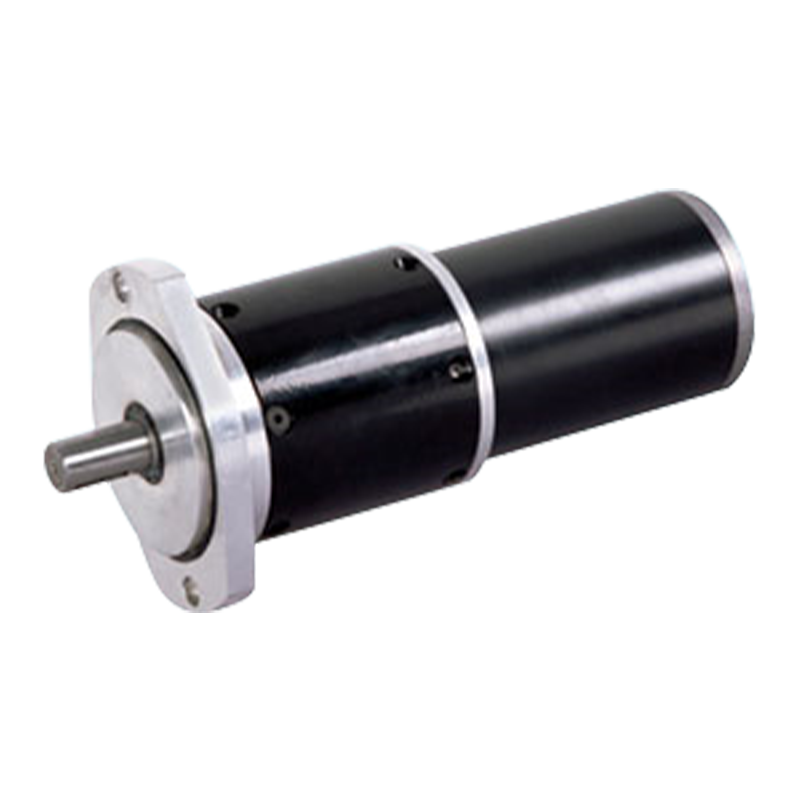

92JX4500K/80ZY170 92mm 1500-2000rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor

92JX4500K/80ZY170 92mm 1500-2000rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor

The 92JX4500K/80ZY170 is a compact power unit with an outer diameter of 92mm, allowing a torque range of 450N.m to 92mm and a no-load speed of 1500-2000rpm.
With high transmission efficiency, planetary gear transmission in the transmission of power, multiple gears mesh at the same time, and uniform load distribution, transmission efficiency is relatively high. Under normal circumstances, the brushed planetary gear motor can maintain a high efficiency within the rated load range and reduce energy loss.
The energy conversion efficiency of the product is better, although there is friction loss between the brush and the commutator, the overall energy conversion efficiency can meet the requirements of application scenarios after reasonable matching with the planetary gear reducer, especially in the working conditions of medium and low speed and high torque, the efficiency advantage is more obvious.

  • 92JX4500K/80ZY170 92mm 1500-2000rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：120JX3000K/96ZY140 120mm 2000-3500rpm 300N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：92JX4500K/80ZY125 92mm 1100-1500rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

92JX4500K/80ZY170

92mm OD Planetary Gearhead,

Permissible Load Range: 450N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

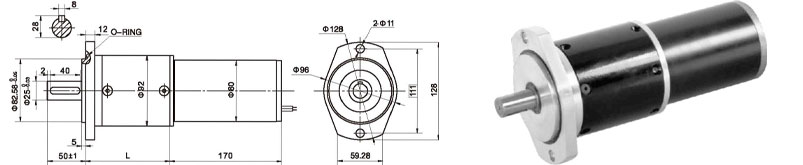

Dimensions

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

80ZY170-2415

24

1500

0.5

1250

0.8

105

7

3.5

24

80ZY170-2420

24

2000

0.6

1600

0.9

150

9

4

30

Gear Motor Technical Data

Configuration 80ZY170-2415 DC Motor(80ZY170-2415 DC Motor)

Reduction ratio

95

135

239

387

422

506

576

717

772

Number of gear trains

3

3

3

3

3

4

4

4

4

Length(L) mm

124

124

124

124

124

143

143

143

143

No-load speed     r/min

15.8

11

6.3

3.9

3.6

3

2.6

2.1

1.9

Rated speed       r/min

13

9.2

5.2

3.2

3

2.5

2.2

1.7

1.6

Rated torque        N.m

55

79

139

226

246

267

304

378

408

Max. permissible load in a short time N.m

300

300

300

300

300

600

600

600

600
Configuration 80ZY170-2420 DC Motor(80ZY170-2420 DC Motor)

Reduction ratio

95

135

239

387

422

506

576

717

772

Number of gear trains

3

3

3

3

3

4

4

4

4

Length(L) mm

124

124

124

124

124

143

143

143

143

No-load speed     r/min

21

15

8.4

5.2

4.7

4

3.5

2.8

2.6

Rated speed       r/min

17

12

6.7

4.1

3.8

3.2

2.8

2.2

2.1

Rated torque        N.m

62

88

157

254

277

300

342

425

458

Max. permissible load in a short time N.m

300

300

300

300

300

600

600

600

600

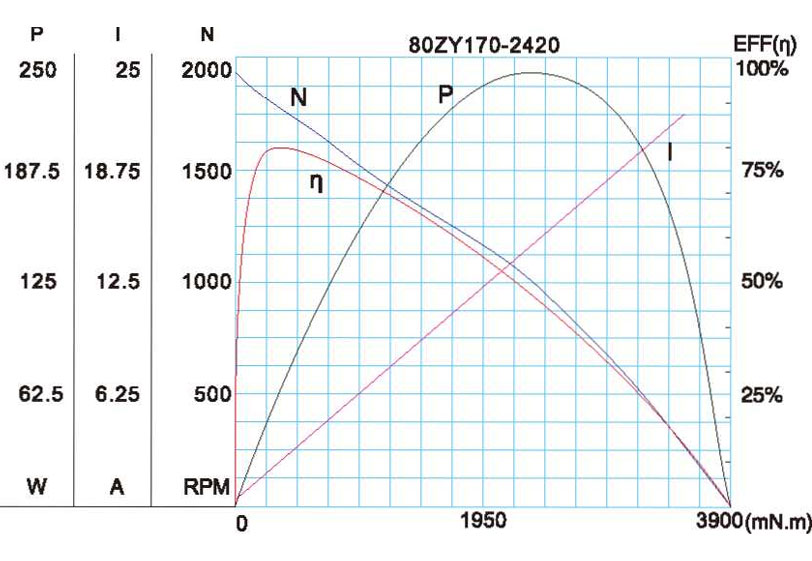

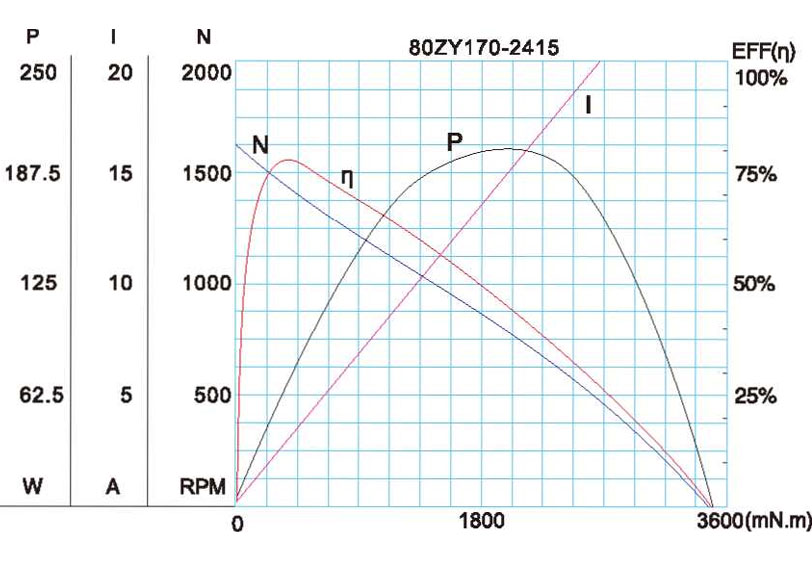

Motor Characteristic Figure

A-36

Technical parameters are subject to change without prior notice.*
