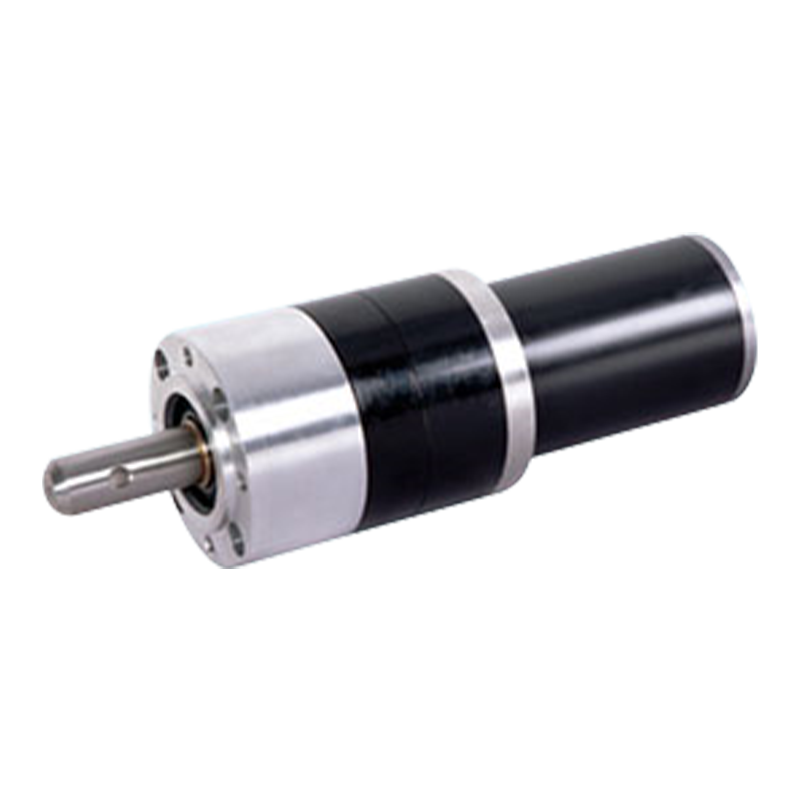

120JX3000K/96ZY140 120mm 2000-3500rpm 300N.m Permanent Magnet DC Brushed Planetary Gear Motor

120JX3000K/96ZY140 120mm 2000-3500rpm 300N.m Permanent Magnet DC Brushed Planetary Gear Motor

Permanent magnet DC planetary gear motor 120JX3000K/96ZY140 is a planetary gear reducer with an outer diameter of 120 mm, the inner gear ring is made of metal, and the no-load speed is 2000- 3500 rpm.
Compact and durable product structure, planetary gear reducer compact structure, small size, light weight, can withstand large load and impact. At the same time, brush motor, after long-term development and improvement, has mature technology, high reliability. After the combination of the two, it can run stably for a long time under normal use and maintenance conditions.
The overload capacity is strong; the planetary gear system can withstand a certain degree of overload, when the load suddenly increases, the planetary gear motor can withstand a large load in a short time through its own structural characteristics and the overload capacity of the motor, without immediate failure.

  • 120JX3000K/96ZY140 120mm 2000-3500rpm 300N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：No previous article
NEXT：92JX4500K/80ZY170 92mm 1500-2000rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

120JX3000K/96ZY140

120mm OD Planetary Gearhead,

Permissible Load Range: 300N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

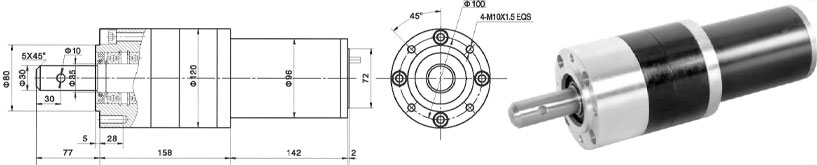

Dimensions

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

96ZY140-2420

24

2000

1

1600

800

150

9

2.9

27

96ZY140-2435

24

3500

1.8

2800

950

200

13

3.2

45

Gear Motor Technical Data

Configure 96ZY140-2420 DC Motor (96ZY140-2420DC Motor)

Reduction ratio

4.8

6

10

23

38

42

69

84

142

234

258

387

427

Number of gear trains

1

1

1

2

2

2

2

3

3

3

3

3

3

Length(L) mm

119

119

119

153

153

153

153

182

182

182

182

182

182

No-load speed     r/min

416

233

200

87

52

47

29

24

14

8.5

7.7

5.2

4.6

Rated speed       r/min

333

266

160

70

42

38

23

19

11

6.8

6.2

4.1

3.7

Rated torque        N.m

3.4

4.3

7.2

15

24

27

44

49

83

136

150

200

249

Max. permissible load in a short time N.m

150

150

150

450

450

450

450

900

900

900

900

900

900
Configure 96ZY140-2435 DC Motor(96ZY140-2435 DC Motor)

Reduction ratio

4.8

6

10

23

38

42

69

84

142

234

258

387

427

Number of gear trains

1

1

1

2

2

2

2

3

3

3

3

3

3

Length(L) mm

119

119

119

153

153

153

153

182

182

182

182

182

182

No-load speed     r/min

729

583

350

152

92

83

51

42

25

15

13.5

9

8

Rated speed       r/min

583

466

280

121

73

66

40

33

19

12

10.8

7.2

6.5

Rated torque        N.m

4.1

5.1

8.5

17

29

32

53

58

98

162

178

268

296

Max. permissible load in a short time N.m

150

150

150

450

450

450

450

900

900

900

900

900

900

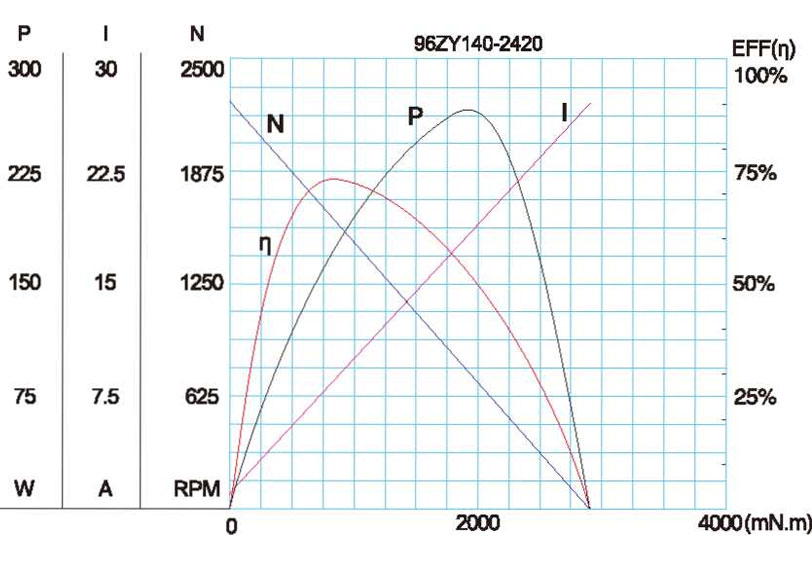

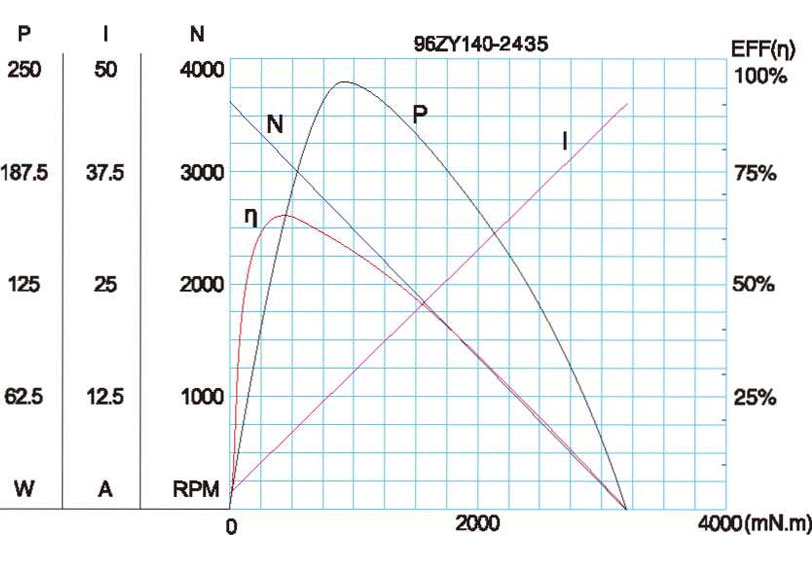

Motor Characteristic Figure

A-37

Technical parameters are subject to change without prior notice.*
