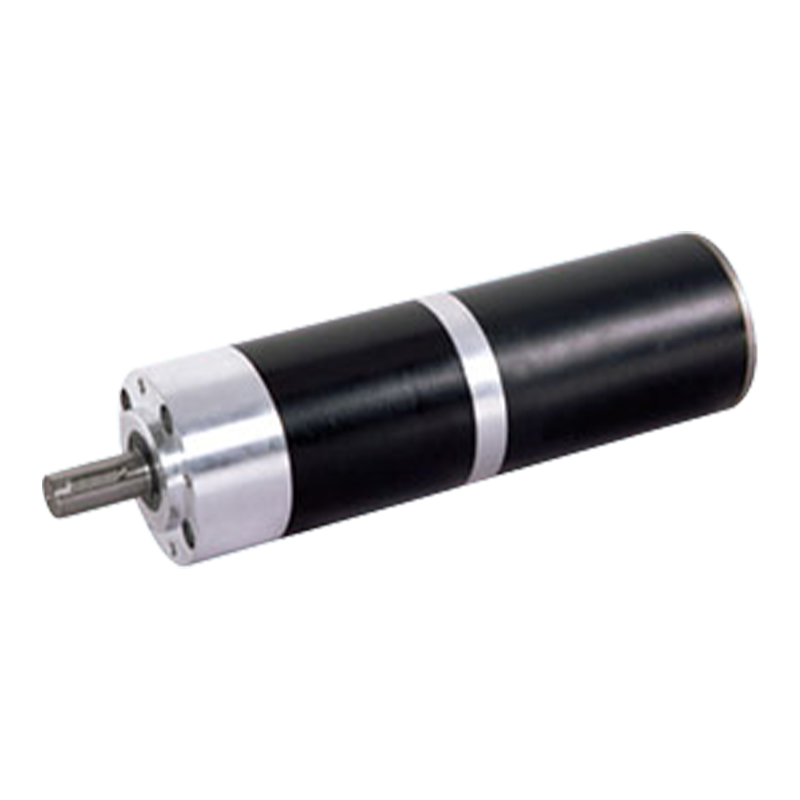

82JX1200K/80ZY115 82mm 2000-3000rpm 120N.m Permanent Magnet DC Brushed Planetary Gear Motor

82JX1200K/80ZY115 82mm 2000-3000rpm 120N.m Permanent Magnet DC Brushed Planetary Gear Motor

The 82JX1200K/80ZY115 is a compact power unit with an outer diameter of 82mm, allowing a torque range of 120N.m to 82mm and a no-load speed of 2000-3000 RPM.
The gear transmission structure of the product has a good torque transmission ability, which can effectively amplify the torque of the motor to meet the needs of high load work. For example, in some small robots or power tools that require a large torque to drive, a brushed planetary gear motor can provide enough power to drive the load.
Product speed adjustment range is wide, the brush motor itself can be more convenient by changing the voltage and other ways to adjust the speed, combined with the planetary gear reducer different transmission ratio combination, so that the brush planetary gear motor can achieve speed adjustment in a wide range to adapt to different working scenarios.

  • 82JX1200K/80ZY115 82mm 2000-3000rpm 120N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：82JX1200K/80ZY125 82mm 120N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：56JX300K/80ZY115 3000-3500rpm 30N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

82JX1200K/80ZY115

82mm OD Planetary Gearhead,

Permissible Load Range:120N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

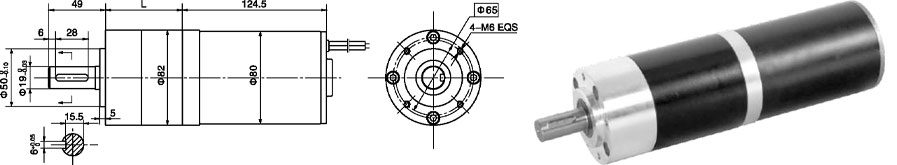

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

80ZY115-2420

24

2000

0.3

1500

440

72

4.2

1.7

15.4

80ZY115-2430

24

3000

0.5

2700

320

90

5.2

2.5

30

Gear Motor Technical Data

Configuration 80ZY115-2420 DC Motor(80ZY115-2420 DC Motor)

Reduction ratio

4

7

14

19

25

32

50

64

71

90

116

152

195

329

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

3

3

Length(L) mm

66

66

90

90

90

90

115

115

115

115

115

115

115

115

No-load speed r/min

500

286

143

105

80

63

40

31

28

22

17

13

10

6

Rated speed r/min

375

214

107

79

60

47

30

23

21

17

13

10

8

4.5

Rated torque N.m

1.6

2.8

5

6.8

8.9

11

16

21

23

29

37

49

63

105

Max. permissible load in a short time N.m

60

60

180

180

180

180

360

360

360

360

360

360

360

360
Configuration 80ZY115-2430 DC Motor(80ZY115-2430 DC Motor)

Reduction ratio

4

7

14

19

25

32

50

64

71

90

116

152

195

329

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

3

3

Length(L) mm

66

66

90

90

90

90

115

115

115

115

115

115

115

115

No-load speed r/min

750

429

214

158

120

94

60

47

42

33

26

20

15

9

Rated speed r/min

675

386

193

142

108

84

54

42

38

30

23

17.5

13.8

8

Rated torque N.m

1.2

2

3.6

4.9

6.5

8.3

12

15

16.5

21

27

36

46

77

Max. permissible load in a short time N.m

60

60

180

180

180

180

360

360

360

360

360

360

360

360

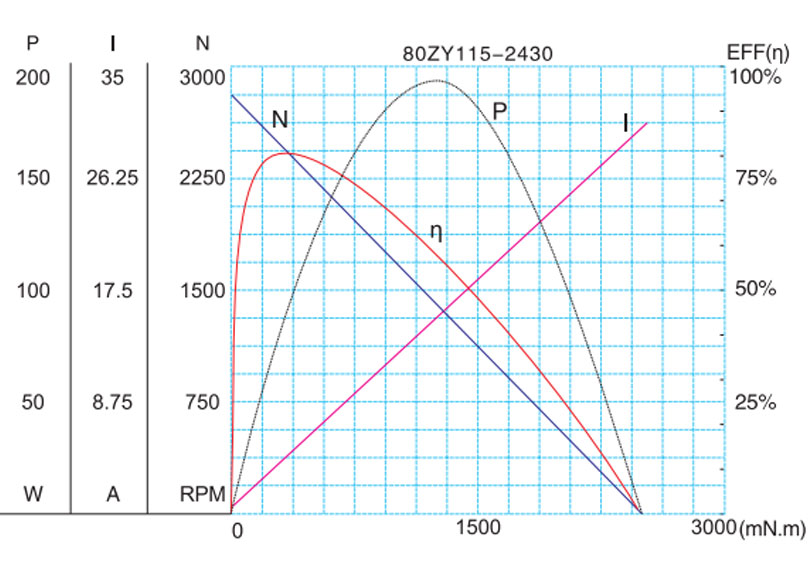

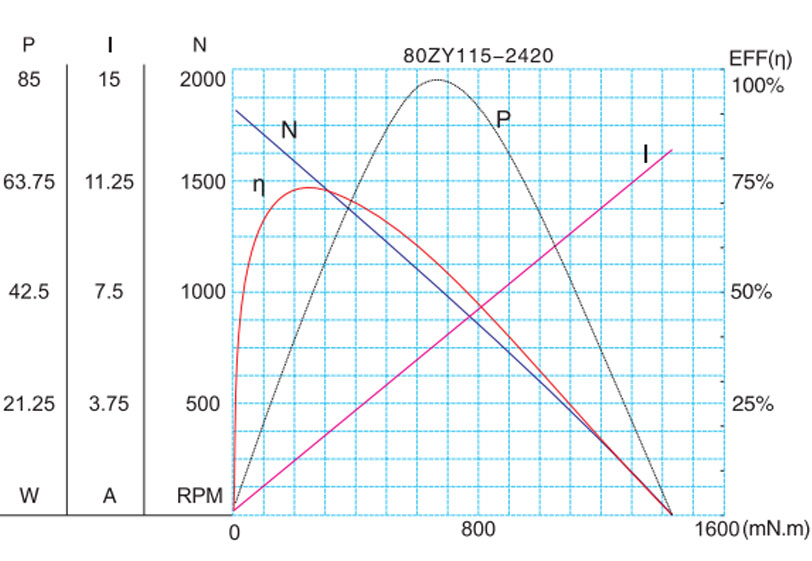

Motor Characteristic Figure

A-33

Technical parameters are subject to change without prior notice.*
