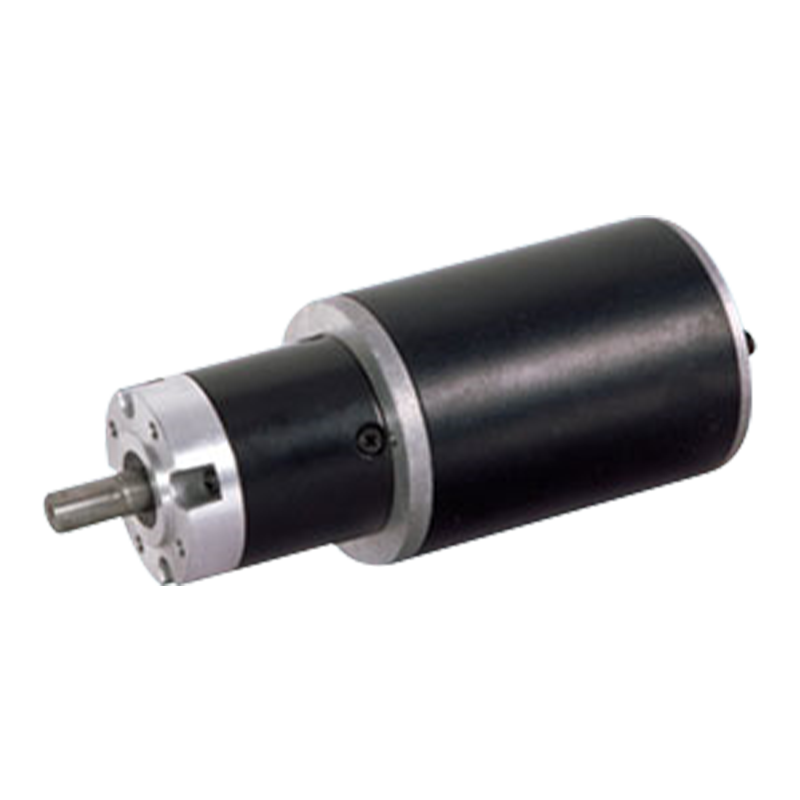

56JX300K/80ZY115 3000-3500rpm 30N.m Permanent Magnet DC Brushed Planetary Gear Motor

56JX300K/80ZY115 3000-3500rpm 30N.m Permanent Magnet DC Brushed Planetary Gear Motor

Product 56JX300K/80ZY115 uses a metal inner ring design, an outer diameter of 56 mm, an idling speed of 3000- 3500 rpm, support 12v/24v dual voltage environment.
With suitable position sensor, high position control accuracy can be achieved. For example, in a 3D printer, the movement position of the print head can be precisely controlled to ensure print quality.
Compact and lightweight, the compact design of the planetary gear mechanism makes the brushed planetary gear motor smaller and lighter at the same power output. It is easy to install in equipment with limited space, such as drones, small medical devices, etc., which facilitates the miniaturization and lightweight design of the equipment.

  • 56JX300K/80ZY115 3000-3500rpm 30N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：82JX1200K/80ZY115 82mm 2000-3000rpm 120N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：56JX300K/63ZY125 56mm 2-30N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

56JX300K/80ZY115

56mm OD Planetary Gearbox,

Permissible Load Range: 30N.m

PM DC Planetary Gear Motor (Ring Gear Material: Powder Metal)

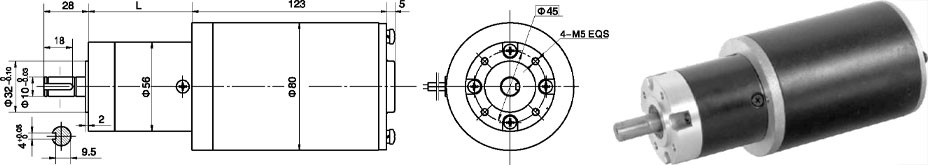

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

80ZY115-2430

24

3000

0.8

2400

450

120

7.5

2.5

30

80ZY115-2435

24

3500

1.1

2900

500

150

9.5

3

35

Gear Motor Technical Data

Configuration 80ZY115-2430 DC Motor(80ZY115-2430 DC Motor)

Reduction ratio

3.6

4.25

7.5

13

15

18

27

32

47

55

65

76

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

Length(L) mm

41

41

41

61

61

61

61

61

72

72

72

72

No-load speed r/min

833

706

400

230

200

167

111

94

64

54

46

39

Rated speed r/min

667

565

320

185

160

133

88

75

51

44

37

32

Rated torque N.m

1.46

1.72

2.7

4.7

5.4

6.5

8.7

10.3

15.4

18

21.3

25

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50
Configuration 80ZY115-2435 DC Motor(80ZY115-2435 DC Motor)

Reduction ratio

3.6

4.25

7.5

13

15

18

27

32

47

55

65

76

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

Length(L) mm

41

41

41

61

61

61

61

61

72

72

72

72

No-load speed r/min

972

824

467

269

233

194

130

109

74

64

54

46

Rated speed r/min

805

682

320

223

193

161

107

90

62

53

44

38

Rated torque N.m

1.6

1.9

3

5.2

6

7.2

9.8

11.6

17

20

23.7

27.7

Max. permissible load in a short time N.m

6

6

6

6

25

25

25

25

50

50

50

50

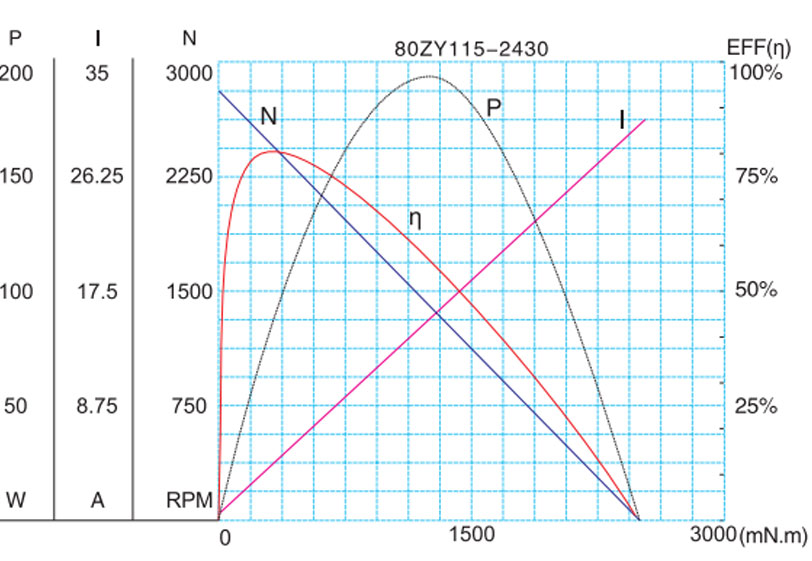

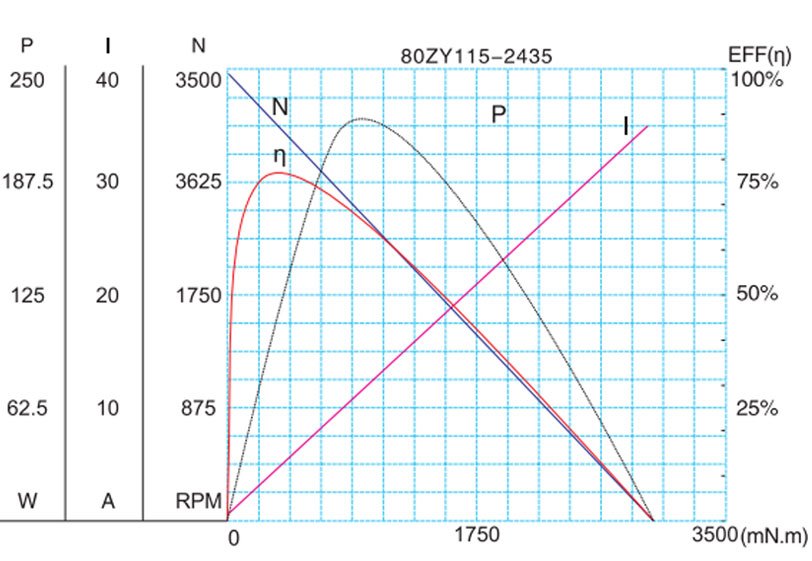

Motor Characteristic Figure

A-32

Technical parameters are subject to change without prior notice.*
