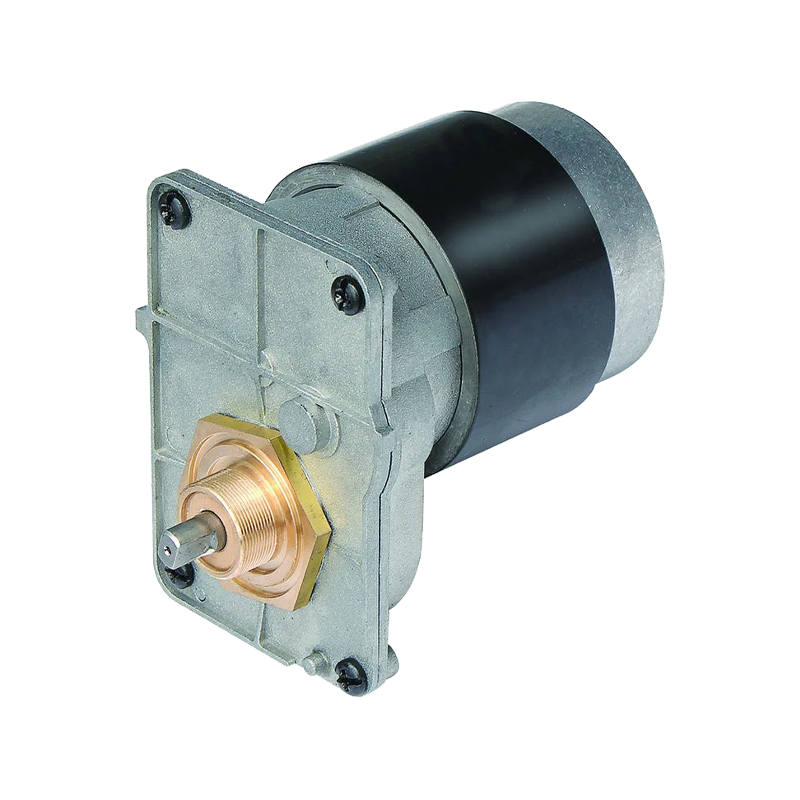

63mm Waterproof Corrosion-Resistant DC Gear Motor for Pool Cleaning Robots

63mm Waterproof Corrosion-Resistant DC Gear Motor for Pool Cleaning Robots

This 63mm diameter DC gear motor is specifically engineered for pool cleaning robots, integrating advanced mechatronics technology to deliver dual functionality for both cleaning and locomotion systems. Featuring fully sealed waterproof construction, it operates reliably underwater up to 3 meters depth withstanding 0.3MPa water pressure, achieving IP68 protection rating. Proprietary surface treatment and polymer wear-resistant materials enhance corrosion resistance by 50%, extending service life threefold compared to conventional motors. The precision gear transmission system maintains stable output torque between 12-18N·m with adjustable speed range of 5-30rpm to accommodate diverse cleaning scenarios. Optimized electromagnetic design minimizes cavitation effects, while dual-bearing structure improves impact resistance for operation in temperatures from -20℃ to 60℃. As the core power unit for intelligent pool cleaners, this motor complies with CE and RoHS certifications, suitable for both commercial and residential robotic cleaning applications.

  • 63mm Waterproof Corrosion-Resistant DC Gear Motor for Pool Cleaning Robots
  • 63mm Waterproof Corrosion-Resistant DC Gear Motor for Pool Cleaning Robots
Download Product Inquiry
PREV：63ZY Brass Flange Swimming Pool Robotic Cleaner DC Electric Pump Motor
NEXT：No next article

+86 0579-86817938-836

[email protected]

63mm Diameter Pool Robot Cleaner DC Gear Motor

Motor for Swimming Pool Robotic Cleaner

Product Description

Swimming Pool Robotic Cleaner Are High-tech Mechatronics Products. Motors Specially Made For This Machine Are Including Cleaning Motors And Walking Motors, Belonging To Advanced Core Technology. The Motors Can Be Used Under The Water And Bear Water Pressure. What's More, The Motor's Wear Resistance And Corrosion Resistance Have Been Greatly Improved.

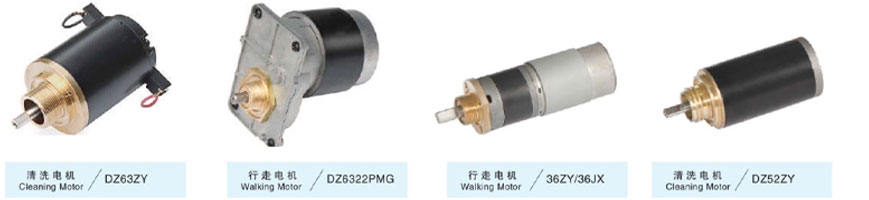

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load Current A

Rated Speed r/min

Rated Torque N.m

Output Powe r W

Rated Current A

Stall Torque N.m

Stall Current A

Type

DZ63ZY

17.5

3600

0.8

2850

0.18

45

4.8

0.55

10

/

DZ6322PMG

15.8

55

0.6

49

1.27

10

0.8

4.2

8

1:57.81

DZ52ZY

24

3600

0.6

2850

0.17

50

3.3

0.5

8

/

36ZY/36JX

24

120

0.2

100

0.5

10

0.6

3.5

6

1:27
