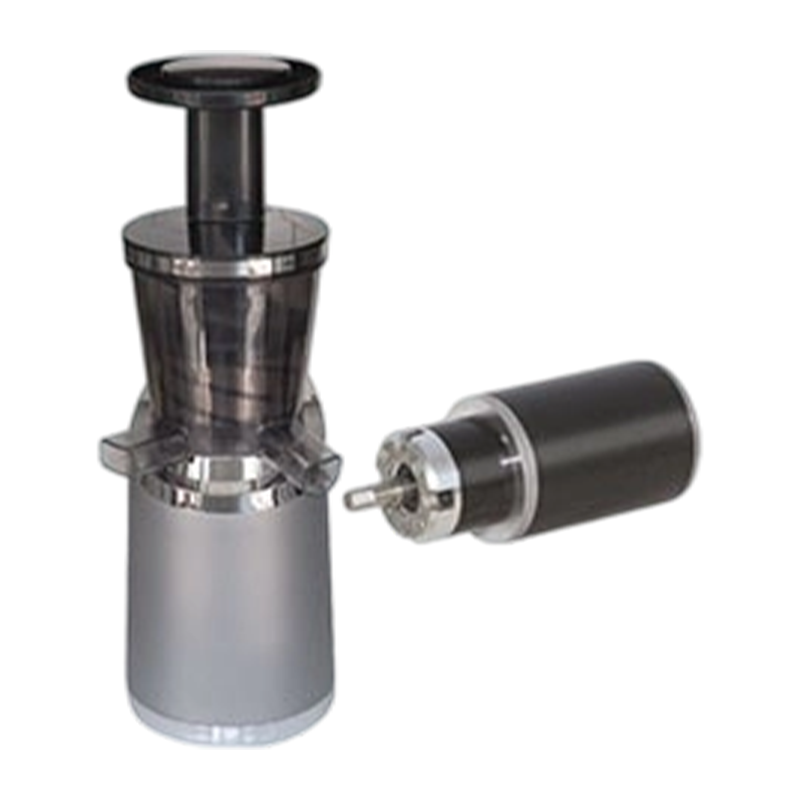

60JX300K56/80ZY115 PMDC 110V/220V Gear Motor for Juicers

60JX300K56/80ZY115 PMDC 110V/220V Gear Motor for Juicers

The 60JX300K56/80ZY115 permanent magnet DC planetary gear motor is equipped with a planetary reducer reduction ratio of 1:56, the allowable torque range is 20N.m, the rated voltage is supported by 110V/220V, and the no-load speed is 50/60r/min. The planetary reducer reduction ratio is accurately adjusted by 32N.m. The product through low speed and high torque, quiet and durable, intelligent control and other characteristics, in the retention of nutrition, improve the juice rate and user experience outstanding performance, especially suitable for high-end juice machine and family healthy eating scene.

  • 60JX300K56/80ZY115 PMDC 110V/220V Gear Motor for Juicers
Download Product Inquiry
PREV：No previous article
NEXT：No next article

+86 0579-86817938-836

[email protected]

60JX300K56/80ZY115 PMDC Gear Motor for Juicers

PMDC Gear Motor for Juicers

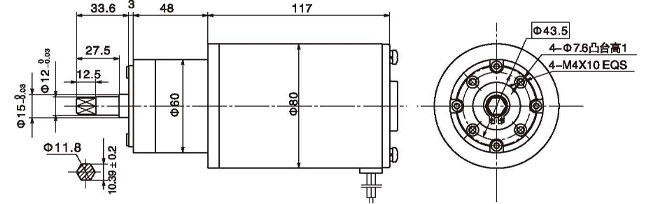

Dimensions

1、The Motor Is Made for Household Juice Extractors.
2、Model: 60JX300K56/ 80ZY115. Gearbox Ratio:1:56, Rated Torque Up to 20N.m.
3、Externally Connect Bridge Rectifier While Running; Without Filter Capacitor; Optional Voltage: 220VAC or 110VAC, Frequency 50HZ or 60HZ.
4、Duty Cycle: S3 (on 20 Min/Off 20 Min).

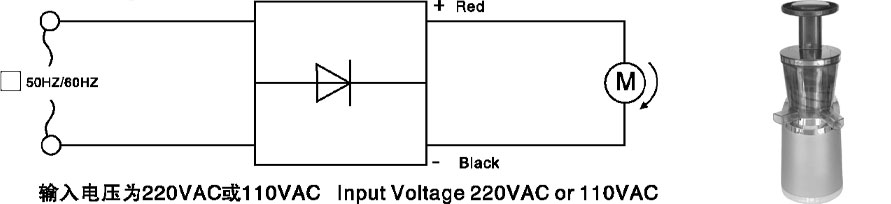

Wire Diagram

Gearmotor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

60JX56/80ZY115-11030

110

50/60

54

0.2

32

20

67

1.45

1:56

60JX56/80ZY115-22030

220

50/60

54

0.1

32

20

67

0.75

1:56
