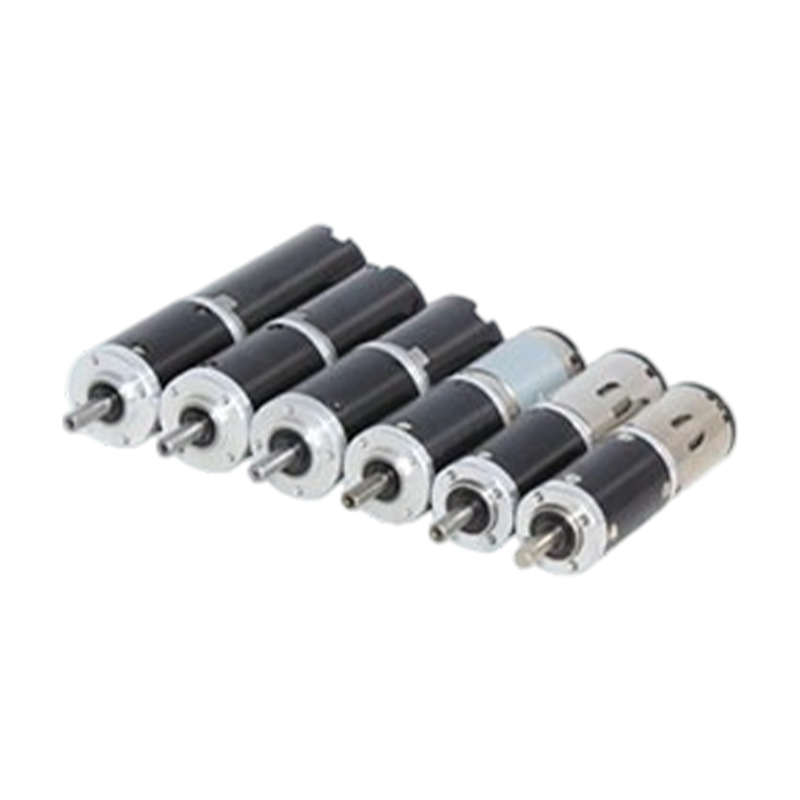

28JX ~32JX DC Planetary Gear Motor (Small Size, High Torque, Used In Compact Window Openers).

28JX ~32JX DC Planetary Gear Motor (Small Size, High Torque, Used In Compact Window Openers).

The 28JX/32JX series DC planetary gear motor is engineered for compact door and window automation systems, featuring a three-stage planetary geartrain delivering 30-120rpm output speed with 10-50kg.cm continuous torque. The all-metal gears undergo carburizing and quenching treatment, combined with IP54-rated sealing to ensure reliable operation across -25℃ to +85℃ temperature range. With diameter dimensions optimized between 28-32mm, this series achieves 78% efficiency through advanced electromagnetic design while maintaining ultra-quiet operation below 45dB(A). Standard Hall-effect feedback enables 0.5° positional accuracy, with optional CAN/LIN bus interfaces for smart home integration. Compliant with IEC60335 safety standards, these motors deliver 3000-hour continuous service life, ideal for precision actuation in casement windows, sliding doors, skylights, and industrial automation equipment. The compact design maintains high power density with 30% volume reduction compared to conventional geared motors, offering customizable voltage (12-24VDC), shaft configurations, and mounting options to meet diverse OEM requirements.

  • 28JX ~32JX DC Planetary Gear Motor (Small Size, High Torque, Used In Compact Window Openers).
Download Product Inquiry
PREV：36JX~60JX DC Planetary Gear Motor( Used In Various Kinds of Window and Door Openers)
NEXT：No next article

+86 0579-86817938-836

[email protected]

28JX ~32JX DC Planetary Gear Motor

Planetary Gear Motor for Door and Window Openers

Product Description

With Different Kind And Specifications, Door And Window Opener Motors Has Successfully Been Offered To Many Customers And Met Different Needs Of Our Customers.

Applications: Fire Smoke Evacuation Window, Casement Window, Vertical Window, Telescopic Window, Widely Used In Civil Building, Industrial Building And Public Buildings; Rated Torque Up lb 30n.m, Successfully Used In Large Public Buildings With Its Safe And Reliable Usage.

Motor Technical Data

Series 1: 28JX ~32JX DC Planetary Gear Motor (Small Size, High Torque, Used In Compact Window Openers).

No.

Type

Gearbox Diameter

Max. Permissible Torque

Rated Voltage

1

28JX30K/28ZY47 (PM DC Planetary Gear Motor)

¢28

3 N.m

12VDC/24VDC

2

30JX30K/28ZY47P (PM DC Planetary Gear Motor)

¢30

3 N.m

12VDC/24VDC

3

32JX30K/28ZY47P (PM DC Planetary Gear Motor)

¢32

3 N.m

12VDC/24VDC

4

32JX30K/31ZY46 (PM DC Planetary Gear Motor)

¢32

3 N.m

12VDC/24VDC

5

32JX30K/31ZY53 (PM DC Planetary Gear Motor)

¢32

3 N.m

12VDC/24VDC

6

32JX30K/31ZY70 (PM DC Planetary Gear Motor)

¢32

3 N.m

12VDC/24VDC

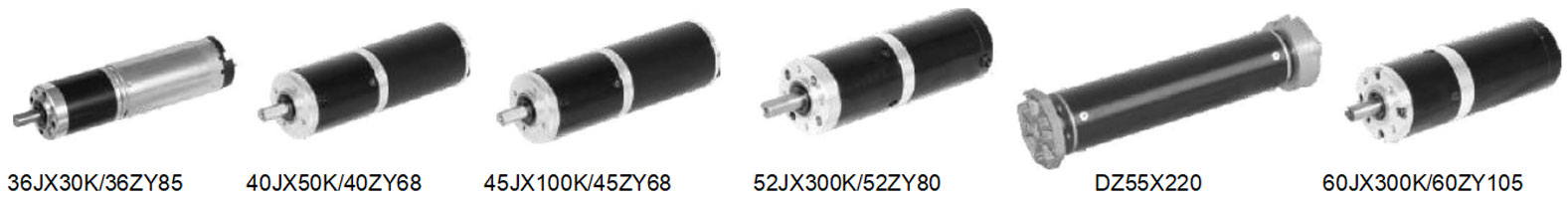

Series 2: 36JX~60JX DC Planetary Gear Motor( Used In Various Kinds of Window and Door Openers)

No.

Type

Gearbox Diameter

Max. Permissible Torque

Rated Voltage

1

36JX30K/36ZY85 (PM DC Planetary Gear Motor)

¢36

3 N.m

12VDC/24VDC

2

40JX50K/40ZY68 (PM DC Planetary Gear Motor)

¢40

5 N.m

24VDC

3

45JX100K/45ZY68 (PM DC Planetary Gear Motor)

¢45

10 N.m

24VDC

4

52JX300K/52ZY80 (PM DC Planetary Gear Motor)

¢52

30 N.m

24VDC

5

DZ55X220 (PM DC Planetary Gear Motor)

¢55

30 N.m

24VDC

6

60JX300K/60ZY105 (PM DC Planetary Gear Motor)

¢60

30 N.m

24VDC
