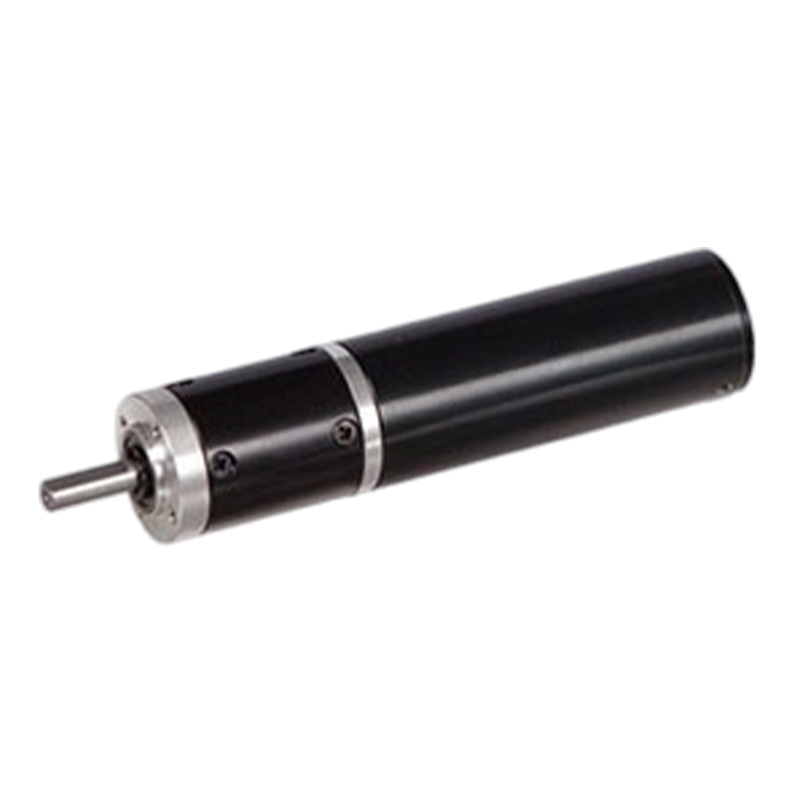

28JXB30K/28ZWN77 28mm 0.3N.m~3.0N.m Brushless DC Planetary Gear Motor

28JXB30K/28ZWN77 28mm 0.3N.m~3.0N.m Brushless DC Planetary Gear Motor

The 28JXB30K/28ZWN77 is a high performance 28mm planetary gearbox designed for a wide range of applications requiring precise torque control. The allowable torque range is 0.3N.m~3.0N.m, with transmission efficiency and durability.
High temperature resistance, anti-electromagnetic interference, planetary gearbox seal is good, can adapt to -40℃ to 100℃ harsh environment, widely used in outdoor equipment, industrial automation and high temperature production line. The use of electronic commutation to replace the traditional mechanical commutation, reducing the friction loss between the brush and the commutator, while the rotor uses permanent magnet material, has a high magnetic energy product, the motor operation efficiency is high, compared with the brush motor can save about 30%-50%.

  • 28JXB30K/28ZWN77 28mm 0.3N.m~3.0N.m Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：28JXB30K/28ZWNP38 28mm 90% Gear Ratio Brushless DC Planetary Gear Motor
NEXT：28JXB30K/28ZWN38 12v/24v 28mm Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

28JXB30K/28ZWN77

28mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

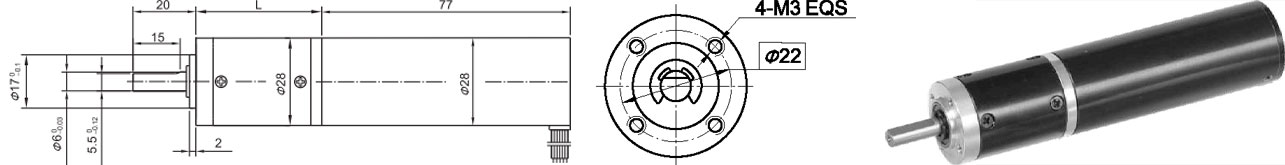

Dimensions

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Voltage VDC

No-load Speed r/min

Speed r/min

Torque mN.m

Power W

Torque mN.m

Current A

Line to line resistance ohms

Line to line inductance mH

28ZWN77-2460

4

3

24

6000

3700

50

16

150

3

4.2

2.2

Brushless Gear Motor Technical Data

Configuration 28ZWN77-2460 Brushless DC Motor (28ZWN77-2460 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

Number of gear trains

1

1

2

2

2

3

3

3

3

Length(L)  mm

31

31

40.1

40.1

40.1

49

49

49

49

No-load speed  r/min

1617

1158

429

316

222

118

85

60

43

Rated speed rAnin

997

714

264

195

137

73

52

37

29

Rated torque N.m

0.17

0.23

0.57

0.77

1.1

1.9

2.5

2.5

2.5

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5
