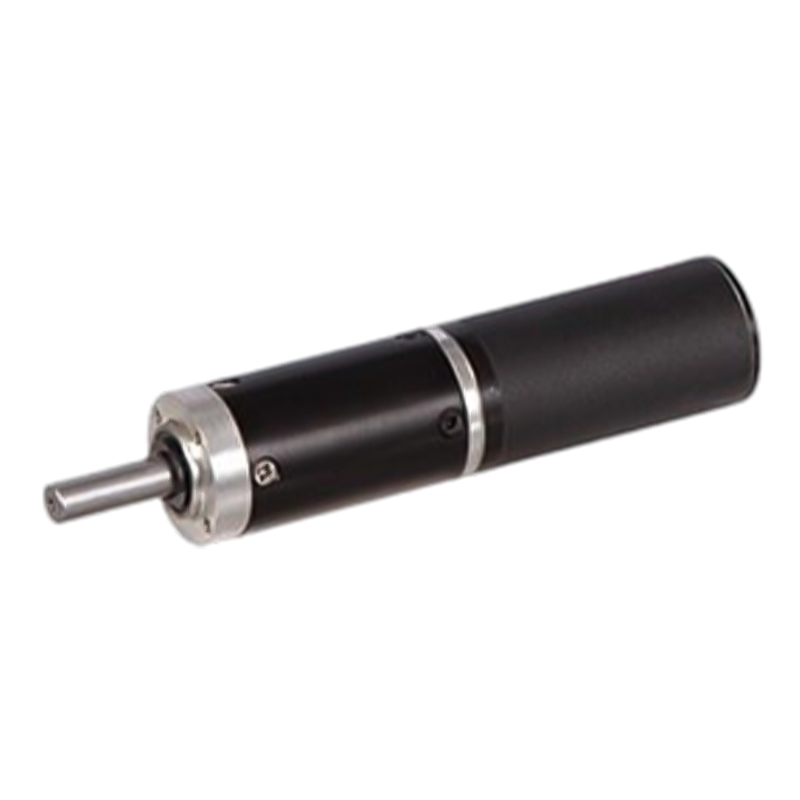

22JX10K/22ZWN45 22mm 7000 RPM Brushless DC Planetary Gear Motor

22JX10K/22ZWN45 22mm 7000 RPM Brushless DC Planetary Gear Motor

The brushless DC planetary gear motor 22JX10K/22ZWN45 uses a metal inner ring with an outer diameter of 22 mm, allowing a torque range of 0.05N.m~0.5N.m, and a no-load speed of 7000 RPM.
Through multi-stage gear meshing, high deceleration ratio can be achieved in a small volume (such as up to 9000:1 in four stages), and the output torque is large and evenly distributed, which is suitable for space-limited scenarios such as robot joints and automation equipment. The brushless motor rotor uses permanent magnets, which is thinner and lighter, and combined with the compact layout of planetary gears, the overall structure is smaller.

  • 22JX10K/22ZWN45 22mm 7000 RPM Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：22JX10K/22ZWN70 22mm 0.1N.m~1.0N.m Brushless DC Planetary Gear Motor
NEXT：No next article

+86 0579-86817938-836

[email protected]

22JX10K/22ZWN45

22mm OD Planetary Gearbox,

Permissible Load Range: 0.05N.m~0.5N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

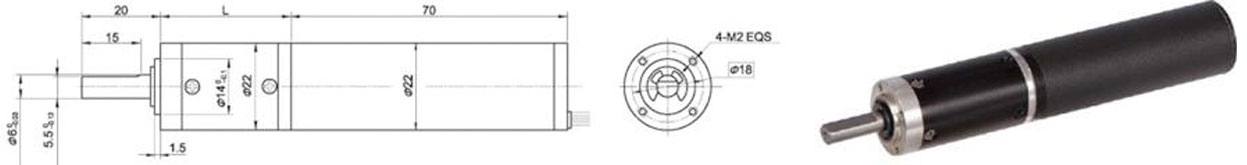

Dimensions

3 phase 10 poles brushless DC motor, with external driver

Brushless Motor Technical Data

TYPE

Number of poles

Number of phases

Voltage VDC

No-load Speed r/min

Speed r/min

Torque mN.m

Power W

Torque mN.m

Current A

Line-to-line resistance in ohms

Line to line inductance mH

22ZWN45-2470

8

3

24

7000

4600

8

3.8

21

1.1

23

6.2

Brushless Gear Motor Technical Data

Configuration 22ZWN45-2470 BLDC Motor (22ZWN45-2470 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L)  mm

24.4

24.4

33

33

31

41.5

41.5

41.5

41.5

49.8

49.8

49.8

No-load speed  r/min

1887

1351

500

368

259

137

99

70

50

37

27

19

Rated speed rAnin

1240

888

329

242

170

90

65

46

33

24

17

12

Rated torque N.m

0.027

0.037

0.091

0.12

0.17

0.3

0.41

0.58

0.8

1

1

1

Max. permissible load in a short time N.m

0.3

0.3

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3
