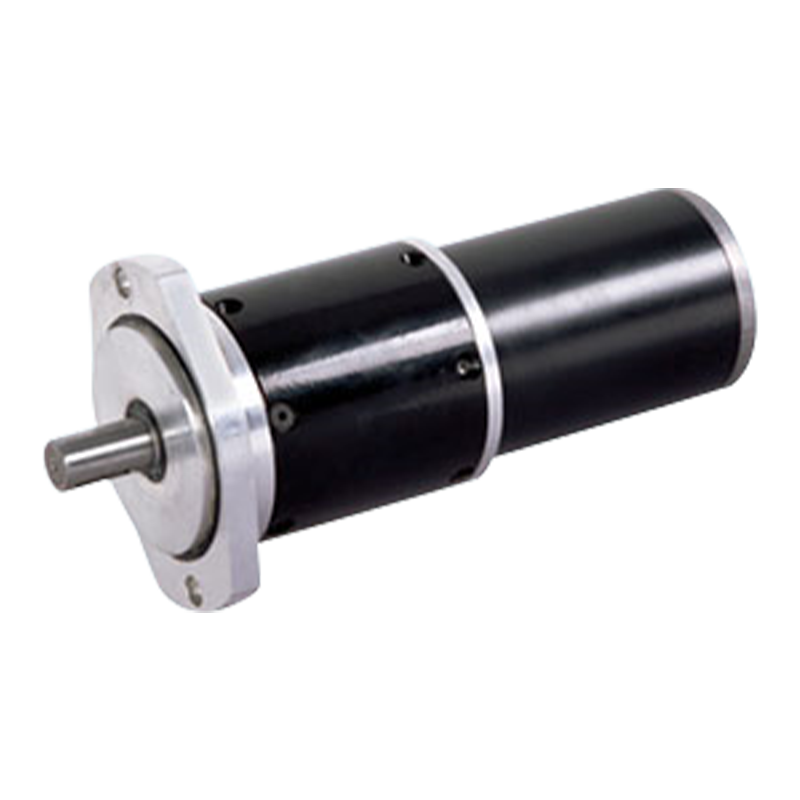

92JX4500K/80ZY125 92mm 1100-1500rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor

92JX4500K/80ZY125 92mm 1100-1500rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor

The 92JX4500K/80ZY125 is a high-performance 92mm planetary gear motor with a no-load speed of 1100-1500rpm. Designed for a variety of applications requiring precise torque control.
The product has high transmission accuracy, the gear meshing clearance of the planetary gear system is small, and the structure is compact, which can ensure a more accurate transmission ratio. In some equipment with higher position accuracy and motion accuracy requirements, such as the positioning mechanism of the automatic production line, the transmission device of the precision instrument, etc., the brushed planetary gear motor can achieve more accurate motion control.
The 92JX4500K/80ZY125 has good repeatable positioning accuracy because of its high transmission stability and accuracy, and it can maintain a good repeatable positioning accuracy during multiple runs, which is very important for equipment requiring frequent accurate position adjustments.

  • 92JX4500K/80ZY125 92mm 1100-1500rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：92JX4500K/80ZY170 92mm 1500-2000rpm 450N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：82JX1200K/80ZY125 82mm 120N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

92JX4500K/80ZY125

92mm OD Planetary Gearhead,

Permissible Load Range: 450N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

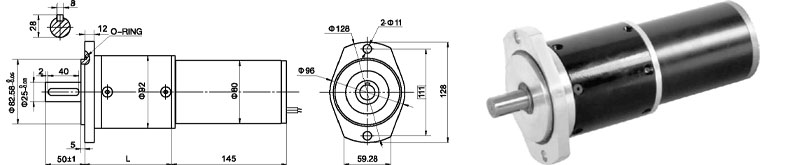

Dimensions

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

80ZY125-2411

24

1100

0.3

770

0.45

40

2.8

2

11

80ZY125-2415

24

1500

0.5

1050

0.6

70

4.5

2.8

18



Gear Motor Technical Data

Configuration 80ZY125-2411 DC Motor(80ZY125-2411 DC Motor)

Reduction ratio

95

135

239

387

422

506

576

717

772

1016

1266

Number of gear trains

3

3

3

3

3

4

4

4

4

4

4

Length(L) mm

124

124

124

124

124

143

143

143

143

143

143

No-load speed     r/min

11.6

8

4.6

2.8

2.6

2.2

1.9

1.5

1.4

1.1

0.85

Rated speed       r/min

8

5.7

3.2

2

1.8

1.5

1.3

1.1

1

0.76

0.6

Rated torque        N.m

31

44

78

127

138

150

171

213

229

322

383

Max. permissible load in a short time N.m

300

300

300

300

300

600

600

600

600

600

600
Configuration 80ZY125-2415 DC Motor(80ZY125-2415 DC Motor)

Reduction ratio

95

135

239

387

422

506

576

717

772

1016

1266

Number of gear trains

3

3

3

3

3

4

4

4

4

4

4

Length(L) mm

124

124

124

124

124

143

143

143

143

143

143

No-load speed     r/min

15.8

11

6.3

3.9

3.6

3

2.6

2.1

1.9

1.5

1.2

Rated speed       r/min

11

7.8

4.4

2.7

2.5

2.1

1.8

1.5

1.4

1

0.83

Rated torque        N.m

42

59

105

169

185

200

228

284

305

402

450

Max. permissible load in a short time N.m

300

300

300

300

300

600

600

600

600

600

600

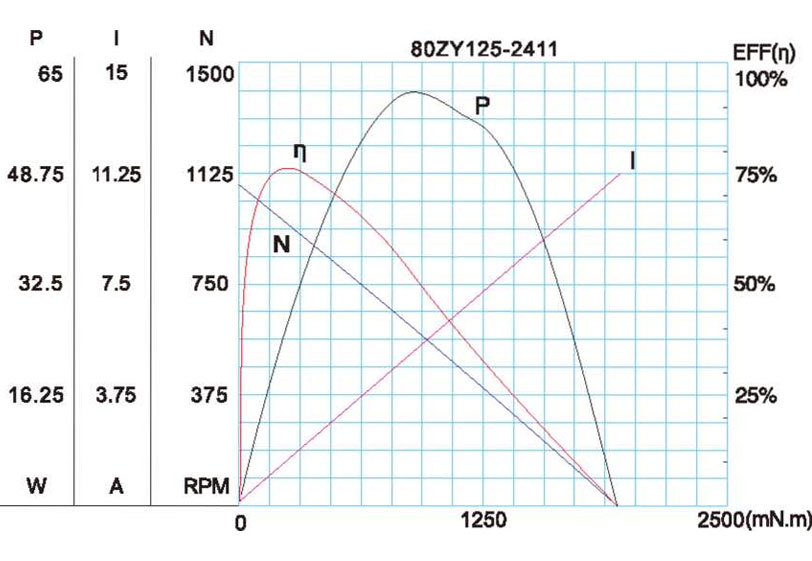

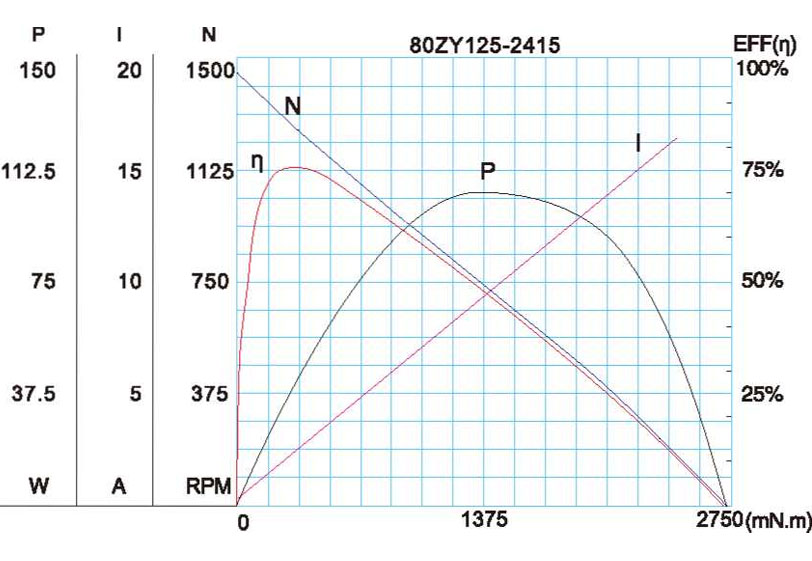

Motor Characteristic Figure

A-35

Technical parameters are subject to change without prior notice.*
